Product Details
Place of Origin: China
Brand Name: OEM
Certification: IATF16949:2016
Model Number: 7002C-2RZ P4 Precision Angular Contact Ball Bearing
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: Please contact us
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 30 days
Supply Ability: 500000pcs per month
Part Number: |
H7002C-2RZ P4 Precision Angular Contact Ball Bearings |
Tolerance: |
P4 / ABEC-7 |
Seals Color: |
Blue And Red |
Contact Angle: |
C/15° |
Lubrication: |
Grease |
Preload: |
Light |
Interchangeable With: |
SKF |
Sealed Type: |
2RZ Sealed |
Part Number: |
H7002C-2RZ P4 Precision Angular Contact Ball Bearings |
Tolerance: |
P4 / ABEC-7 |
Seals Color: |
Blue And Red |
Contact Angle: |
C/15° |
Lubrication: |
Grease |
Preload: |
Light |
Interchangeable With: |
SKF |
Sealed Type: |
2RZ Sealed |

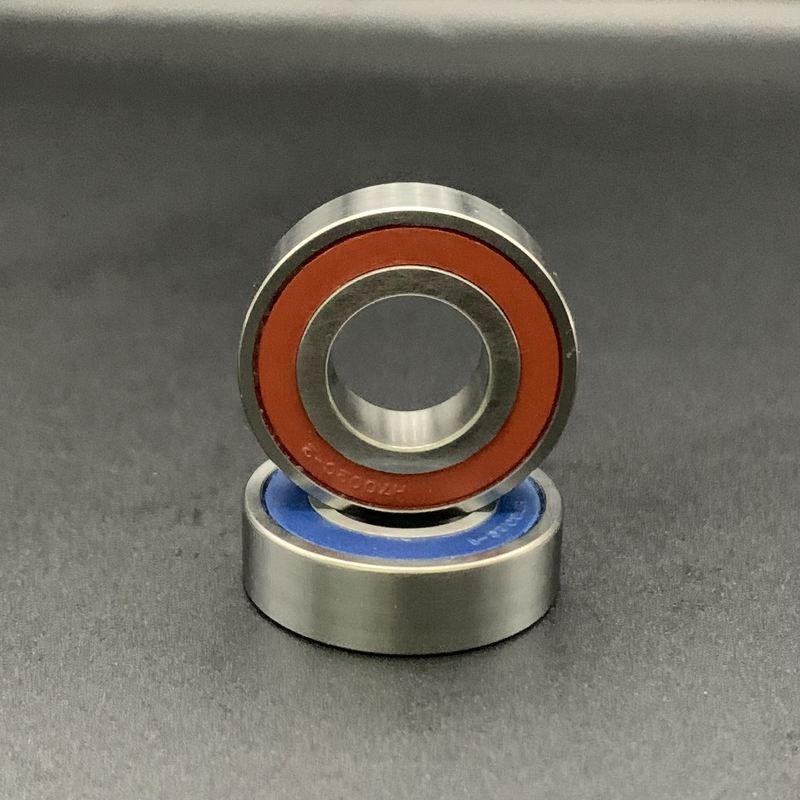

H7002C-2RZ P4 Precision Angular Contact Ball Bearings15x32x9mm Speed Spindle Tool
The H7002C-2RZ P4 Precision Angular Contact Ball Bearing utilizes premium materials and state-of-the-art manufacturing processes. Designed for applications requiring high speed and precision, such as speed spindle tools in carving machines, this bearing offers superior performance and dependable operation. The robust construction guarantees precise functionality and durability, making it ideal for challenging working conditions.
| Bearing Number | Dimensions(mm) | Basic Load Rating(N) | Limiting Speed(rpm) | Weight(Kg) | ||||||
| Inner Diameter | Outer Diameter | Width | Chamfer | Dynamic | Static | Grease | Oil | |||
| d | D | B | rsmin | r1smin | Cr | Cor | Non-contact | Non-contact | reference | |
| H7002C-2RZ | 15 | 32 | 9 | 0.3 | 0.15 | 3600 | 2300 | 60000 | / | 0.03 |
| Ring Material |
Imported Premium-Grade Bearing Steel (803 Q, Sweden) |
| Roller Material |
Imported Japanese AKS Steel Balls, Grade G2, or Imported Saint-Gobain Ceramic Balls, Grade G2 |
| Cage Material |
Bakelite Cage or PEEK High-strength Cage |
| Contact Angle | 15°,25° & 40° available |
| Lubrication | Grease as Agreement |
| Matched Arrangement | Available 2 |
| Preload | Available |
| Number Of Bearings In Matched Set | 2 pcs/set |
| Universal Matching Bearing | Yes,DB,DF,DT(Back to Back,Face to Face,Tandem) |
| Temperature Range | -30°C ~ +110°C |
| ABEC Rating Precision | P4 (ABEC7)P5,P2 available |
| CERTIFICATE | RoHS, IATF16949:2016 |
| For Load Direction | Angular Contact |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us for Details |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes,Welcome Visit Our Company |
H7002C-2RZ P4 Precision Angular Contact Ball Bearing Key Design Features:
Dimensions:
Bore Diameter: 15 mm
Outer Diameter: 32 mm
Width: 9 mm
Material Quality: Crafted from high-quality materials to ensure durability and reliability under demanding conditions.
Precision Manufacturing: Manufactured to extremely tight tolerances, ensuring superior dimensional and geometric accuracy.
High-Speed Capability: Optimized for high-speed operation with minimal heat generation and friction, making it ideal for applications requiring rapid rotation.
Load Capacity: Capable of handling both radial and axial loads efficiently, thanks to its angular contact design.
Preload Options: Available with various preload options to enhance stiffness and reduce play, improving overall system precision.
Surface Finish: Superior surface finish on raceways and rolling elements reduces noise and extends service life.
This bearing is an essential component in industries that demand high precision and performance, such as machine tool spindles,high-speed machinery,aerospace components,medical equipment,semiconductor manufacturing,automotive industry,and scientific instruments.
