Product Details
Place of Origin: China
Brand Name: OEM
Certification: IATF16949:2016
Model Number: 7005C-2RZ P4A Precision Angular Contact Ball Bearing
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: Please contact us
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 30 days
Supply Ability: 200000pcs per month
Part Number: |
H7005C-2RZ P4A Precision Angular Contact Ball Bearing |
Tolerance Class: |
P4A |
Seals Color: |
Black And Brown |
Contact Angle: |
C/15° |
Lubrication: |
Grease As Agreement |
Preload: |
Light |
Matched Arrangement: |
2 Bearings/pair |
Type: |
Angular Contact Ball Bearing |
Interchangeable With: |
SKF |
Logo: |
As Per Customers' Requirements |
Part Number: |
H7005C-2RZ P4A Precision Angular Contact Ball Bearing |
Tolerance Class: |
P4A |
Seals Color: |
Black And Brown |
Contact Angle: |
C/15° |
Lubrication: |
Grease As Agreement |
Preload: |
Light |
Matched Arrangement: |
2 Bearings/pair |
Type: |
Angular Contact Ball Bearing |
Interchangeable With: |
SKF |
Logo: |
As Per Customers' Requirements |

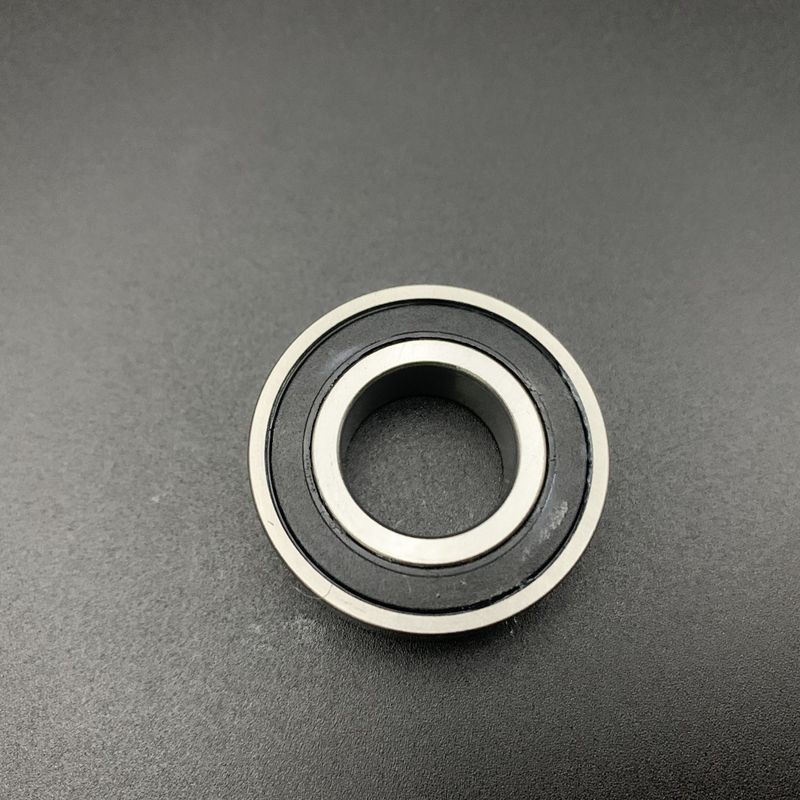

H7005C-2RZ P4A Super Precision Angular Contact Ball Bearing Speed Spindle CNC Tool
The H7005C-2RZ P4A Precision Angular Contact Ball Bearing uses high-quality materials and precise manufacturing techniques. Built for high-speed spindles and precision instruments, it ensures accurate and fast operation. This bearing provides excellent performance and reliability in critical applications.
|
|||||||||||||||||||||||||||||||||||||||||
| Ring Material | Steel |
| Roller Material | Steel Ball ,Ceramic Ball available |
| Cage Material | Bakelite Phenolic |
| Contact Angle | 15°,25° & 40° available |
| Lubrication | Required Grease |
| Matched Arrangement | Available 2 pcs/pair or as arrangement |
| Preload | Available Light |
| Number Of Bearings In Matched Set | 2 |
| Universal Matching Bearing | Yes,DB,DF,DT(Back to Back,Face to Face,Tandem) |
| Temperature Range | -30°C ~ +110°C |
| Precision ABEC Rating | P4 (ABEC7)P5,P2 available |
| CERTIFICATE | RoHS, IATF16949:2016 |
| For Load Direction | Angular Contact |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us for Details |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
7005C-2RZ P4A Super Precision Angular Contact Ball Bearing Key Design Features:
Dimensions: Bore Diameter: 25 mm
Outer Diameter: 47 mm
Width: 12 mm
Material Quality: Crafted from high-quality materials to ensure durability and reliability under demanding conditions.
Precision Manufacturing: Manufactured to extremely tight tolerances, ensuring superior dimensional and geometric accuracy.
High-Speed Capability: Optimized for high-speed operation with minimal heat generation and friction, making it ideal for applications requiring rapid rotation.
Load Capacity: Capable of handling both radial and axial loads efficiently, thanks to its angular contact design.
Preload Options: Available with various preload options to enhance stiffness and reduce play, improving overall system precision.
Surface Finish: Superior surface finish on raceways and rolling elements reduces noise and extends service life.
This bearing is an essential component in industries that demand high precision and performance, such as machine tool spindles,high-speed machinery,aerospace components,medical equipment,semiconductor manufacturing,automotive industry,and scientific instruments.
