Product Details
Place of Origin: China
Brand Name: OEM
Certification: IATF16949:2016
Model Number: H7000C-2RZ
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: Please contact us
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 30 days
Supply Ability: 500000 pcs per month
Inside Diameter: |
10 Mm |
Outside Diameter: |
26 Mm |
Thickness: |
8 Mm |
Bearing Material: |
Chrome Stee Gcr15 |
Seals Type: |
Rubber Seals On Both Sides |
Structure: |
Angular Contact |
Precision: |
P4 |
Number Of Row: |
Single Row |
Cage Material: |
Nylon Bakelite Brass |
Ring: |
Forging Imported Premium-Grade Bearing Steel (803 Q, Sweden) |
Ball: |
Imported Japanese AKS Steel Balls, Grade G2, Or Imported Saint-Gobain Ceramic Balls, Grade G2 |
Cage: |
Bakelite Cage Or PEEK High-strength Cage |
Inside Diameter: |
10 Mm |
Outside Diameter: |
26 Mm |
Thickness: |
8 Mm |
Bearing Material: |
Chrome Stee Gcr15 |
Seals Type: |
Rubber Seals On Both Sides |
Structure: |
Angular Contact |
Precision: |
P4 |
Number Of Row: |
Single Row |
Cage Material: |
Nylon Bakelite Brass |
Ring: |
Forging Imported Premium-Grade Bearing Steel (803 Q, Sweden) |
Ball: |
Imported Japanese AKS Steel Balls, Grade G2, Or Imported Saint-Gobain Ceramic Balls, Grade G2 |
Cage: |
Bakelite Cage Or PEEK High-strength Cage |

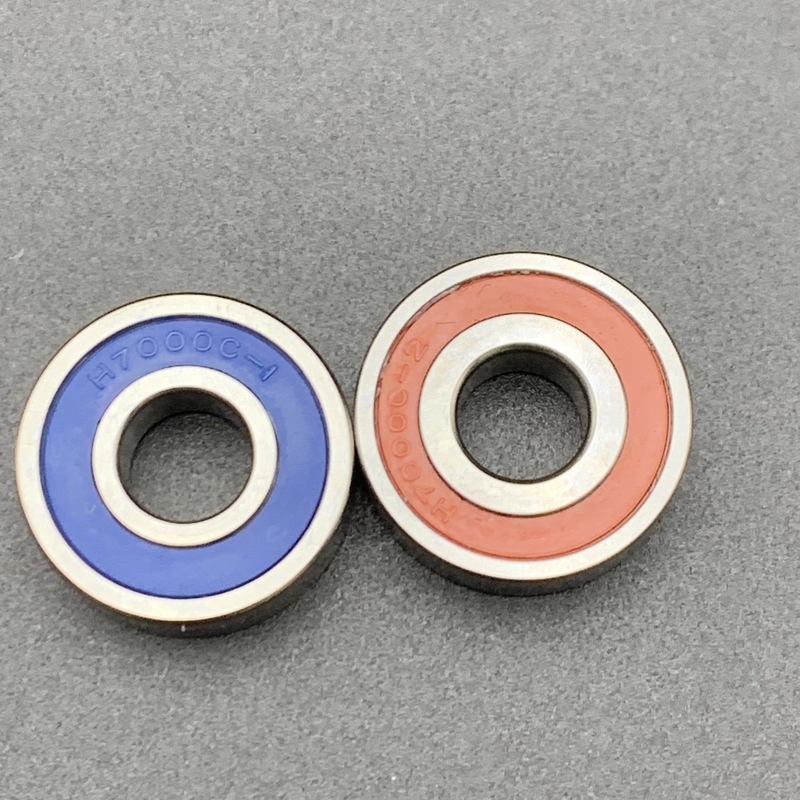

H7000C-2RZ High Speed Electric Spindle Bearing Super Precision Angular Contact Bearing Engraving Machine 10*26*8
Application:High-Speed Electric Spindles (for Wood Carving,Stone Carving,Grinding machines, etc.).
Characteristics:High Operational Precision,No Vibration,Low Noise,and High-Temperature Resistance
15-Degree Contact Angle:
Dual Load Capability: The 15-degree contact angle allows the spindle to handle both axial and radial loads effectively, ensuring stable and reliable operation.
Versatile Pairing Options:
Multiple Configurations: The bearings can be paired in various configurations such as DB (Back-to-Back), DF (Face-to-Face), DT (Tandem), TBT, TFT, TT, QBC, QBT, QFC, QFT, and QT. Additionally, they can be paired universally, offering flexibility in assembly and application.
Pre-Adjusted Pre-Load:
Factory Pre-Adjustment: The paired bearings are pre-adjusted for pre-load at the our factory, eliminating the need for users to perform tedious adjustments during installation, thus reducing setup time and complexity.
