Product Details
Place of Origin: China
Brand Name: OEM
Certification: IATF16949:2016
Model Number: H7007C-2RZ P4A Precision Angular Contact Ball Bearing
Payment & Shipping Terms
Minimum Order Quantity: 100
Price: Please contact us
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 30 days
Supply Ability: 100000pcs per month
Part Number: |
CNC Spindle Bearings |
Tolerance Class: |
P4A |
Seals Type: |
Sealed 2RZ |
Contact Angle: |
15° |
Lubrication: |
Grease |
Preload: |
Light |
Matched Arrangement: |
2 Bearings |
Type: |
Angular Contact Ball Bearing |
Part Number: |
CNC Spindle Bearings |
Tolerance Class: |
P4A |
Seals Type: |
Sealed 2RZ |
Contact Angle: |
15° |
Lubrication: |
Grease |
Preload: |
Light |
Matched Arrangement: |
2 Bearings |
Type: |
Angular Contact Ball Bearing |

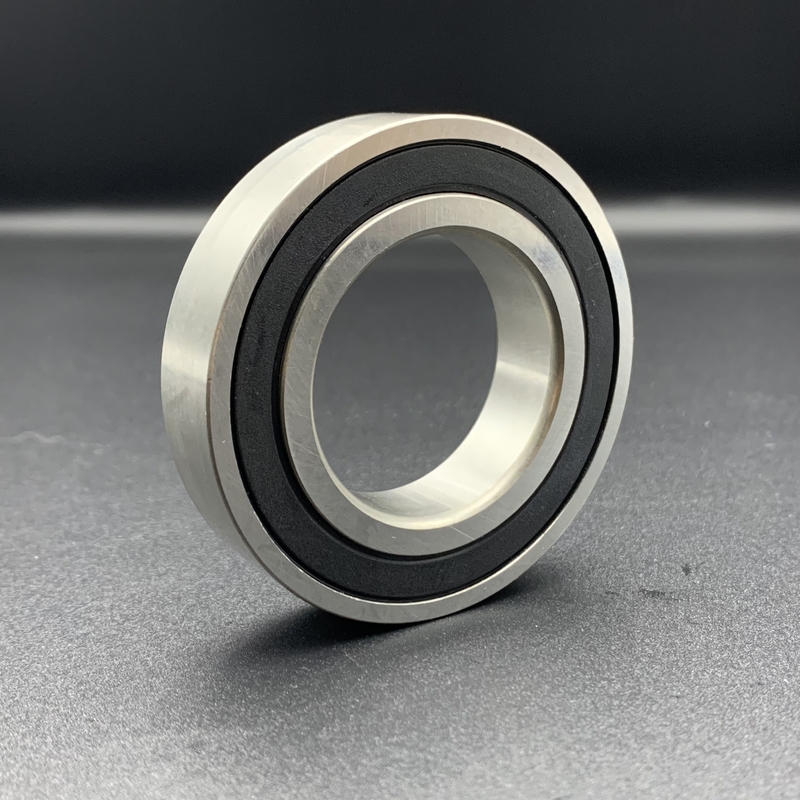

H7007C-2RZ P4A Precision Angular Contact Ball Bearing Speed Spindle Bearings CNC
The H7007C-2RZ P4A Precision Angular Contact Ball Bearing is a prime example of advanced materials science, mechanical engineering, and precision manufacturing. Designed specifically for high-speed spindles and precision instruments where accuracy and speed are critical, this bearing delivers exceptional performance
| Bearing Number | Dimensions(mm) | Basic Load Rating(N) | Limiting Speed(rpm) | Weight(Kg) | ||||||
| Inner Diameter | Outer Diameter | Width | Chamfer | Dynamic | Static | Grease | Oil | |||
| d | D | B | rsmin | r1smin | Cr | Cor | Non-contact | Non-contact | reference | |
| H7007C-2RZ | 35 | 62 | 14 | 1 | 0.6 | 9200 | 7800 | 28000 | / | 0.18 |
| Ring Material | Steel |
| Roller Material | Steel,Ceramic available |
| Cage Material | Bakelite Phenolic |
| Contact Angle | 15°,25° & 40° available |
| Lubrication | Required |
| Matched Arrangement | Available |
| Preload | Available |
| Number Of Bearings In Matched Set | 2 |
| Universal Matching Bearing | Yes,DB,DF,DT(Back to Back,Face to Face,Tandem) |
| Temperature Range | -30°C ~ +110°C |
| ABEC Rating | P4 (ABEC7)P5,P2 available |
| CERTIFICATE | RoHS, IATF16949:2016 |
| For Load Direction | Angular Contact |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
H7007C-2RZ P4A Super Precision Angular Contact Ball Bearing Key Design Features:
Dimensions: Bore Diameter: 35 mm
Outer Diameter: 62 mm
Width: 14 mm
Material Quality: Crafted from high-quality materials to ensure durability and reliability under demanding conditions.
Precision Manufacturing: Manufactured to extremely tight tolerances, ensuring superior dimensional and geometric accuracy. High-Speed Capability: Optimized for high-speed operation with minimal heat generation and friction, making it ideal for applications requiring rapid rotation.
Load Capacity: Capable of handling both radial and axial loads efficiently, thanks to its angular contact design.
Preload Options: Available with various preload options to enhance stiffness and reduce play, improving overall system precision. Surface Finish: Superior surface finish on raceways and rolling elements reduces noise and extends service life.
This bearing is an essential component in industries that demand high precision and performance, such as machine tool spindles,high-speed machinery,aerospace components,medical equipment,semiconductor manufacturing,automotive industry,and scientific instruments.
