Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 6012 2RS
Payment & Shipping Terms
Minimum Order Quantity: 5000
Price: Please contact us
Packaging Details: plastic tub,carton,pallet
Supply Ability: 1 million pcs per year
Part Number: |
6012 2RS C0 Deep Groove Ball Bearings |
Type: |
Ball Bearing |
Structure: |
Deep Groove |
Number Of Row: |
Single Row |
Vibration: |
Z1,Z2,Z3, |
Noise: |
V1,V2,V3, |
Precision: |
P0 |
Clearance: |
C0,C2,C3,C4,EM |
Part Number: |
6012 2RS C0 Deep Groove Ball Bearings |
Type: |
Ball Bearing |
Structure: |
Deep Groove |
Number Of Row: |
Single Row |
Vibration: |
Z1,Z2,Z3, |
Noise: |
V1,V2,V3, |
Precision: |
P0 |
Clearance: |
C0,C2,C3,C4,EM |

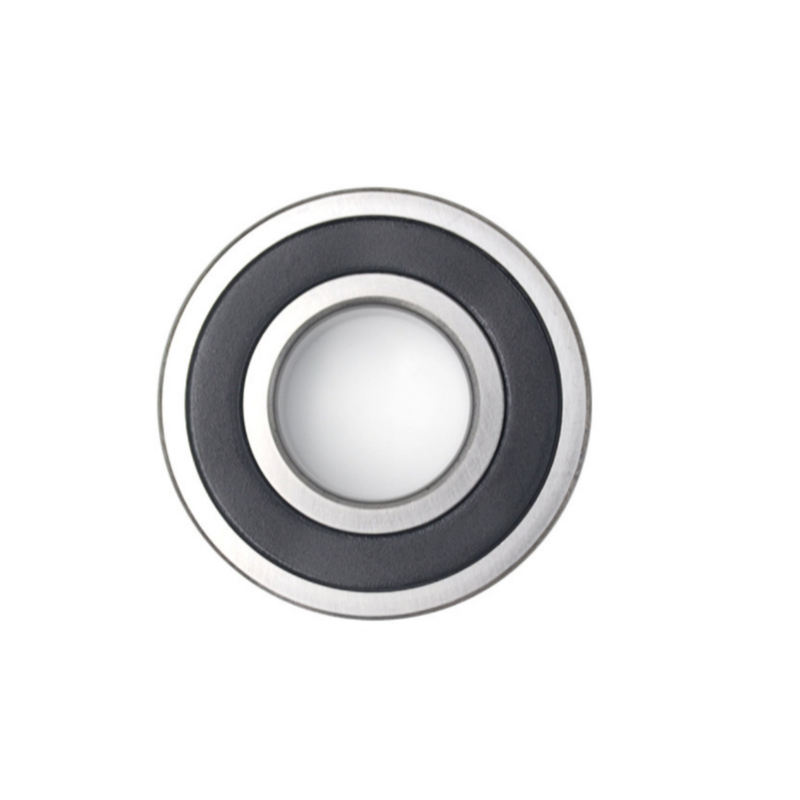

6012 2RS C0 Deep Groove Ball Bearings Radial Roller Single Row Sealed 60*95*18mm Harvest
The 6012 2RS bearing features a single row of balls and a deep groove raceway in the outer ring, renowned for its robustness and durability. It can offer a highly adaptable and efficient solution for a multitude of mechanical applications. Here’s a detailed introduction to this popular bearing type:
| Bearing Number | Dimensions(mm) | Basic Load Rating(N) | Limiting Speed(rpm) | Weight(Kg) | |||||
| Inner Diameter | Outer Diameter | Width | Chamfer | Dynamic | Static | Grease | Oil | ||
| d | D | B | r(min) | Cr | Cor | Non-contact | Non-contact | Reference | |
| 6012 2RS | 60 | 95 | 18 | 1.1 | 29500 | 23200 | 4000 | / | 0.412 |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage | Steel |
| Lubrication | Grease |
| Measurement Unit | Metric |
| Seal Type | ZZ(2RS,2RZ, open types are available) |
| Temperature Range | -40°C ~ +180°C |
| CERTIFICATE | RoHS, IATF16949:2016 |
| Feature | Long Life,Low Noise,High Speed |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
| Size | Standard,For custom sizes ,please contact us |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Tolerance Class | P0 |
| Radial Clearance | C0 |
Requirements for Bearings in Harvest
A harvester typically uses over 100 sets of bearings, with the following requirements for these bearings:
What's the Performance Features of 6012 2RS Bearings in Harvester?
The 6012 2RS bearing is ideally suited for harvesters, offering reliable performance at low speeds with a wide operating temperature range from -20°C to 70°C. Its double rubber seals (2RS) provide excellent water and dust resistance, crucial for harsh farming conditions. Built for long service life and capable of withstanding significant loads, this bearing ensures durable and low-maintenance operation in agricultural machinery.
What's the Applications of the 6012 2RS Bearing?
The 6012 2RS bearing, a deep groove ball bearing with robust rubber seals, is widely used across various industrial sectors for its reliability and performance in harsh conditions. It is used in precision robotics, material handling systems, rolling mills, foundries, mining, and railway industries, where it must endure high temperatures and contamination. Specific applications include machinery for chemical processing, bending and flattening equipment, dryers, mixers, plastic weaving and pipe manufacturing machines, washing and drying appliances, veterinary instruments, textile machinery, injection molding components, glass grinding machines, acid mist purifiers, electrical devices, pumps, welders, planers, spray dryers, packaging equipment, forestry machinery, copper smelting devices, and metal detection systems.
If you need further details or have other questions, feel free to ask!
