Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 6306 2RS
Payment & Shipping Terms
Minimum Order Quantity: 50000
Price: Please contact us
Packaging Details: plastic tub,carton,pallet
Delivery Time: 30 days
Supply Ability: 1 million pcs per year
Part Number: |
6306 2RS C0 Deep Groove Ball Bearings |
Type: |
Ball Bearing |
Structure: |
Deep Groove |
Number Of Row: |
Single Row |
Vibration: |
Z2,Z3, Z4 |
Noise: |
V2,V3, V4 |
Precision: |
P6, P0 |
Clearance: |
C0,C2,C3,C4,EM |
Part Number: |
6306 2RS C0 Deep Groove Ball Bearings |
Type: |
Ball Bearing |
Structure: |
Deep Groove |
Number Of Row: |
Single Row |
Vibration: |
Z2,Z3, Z4 |
Noise: |
V2,V3, V4 |
Precision: |
P6, P0 |
Clearance: |
C0,C2,C3,C4,EM |

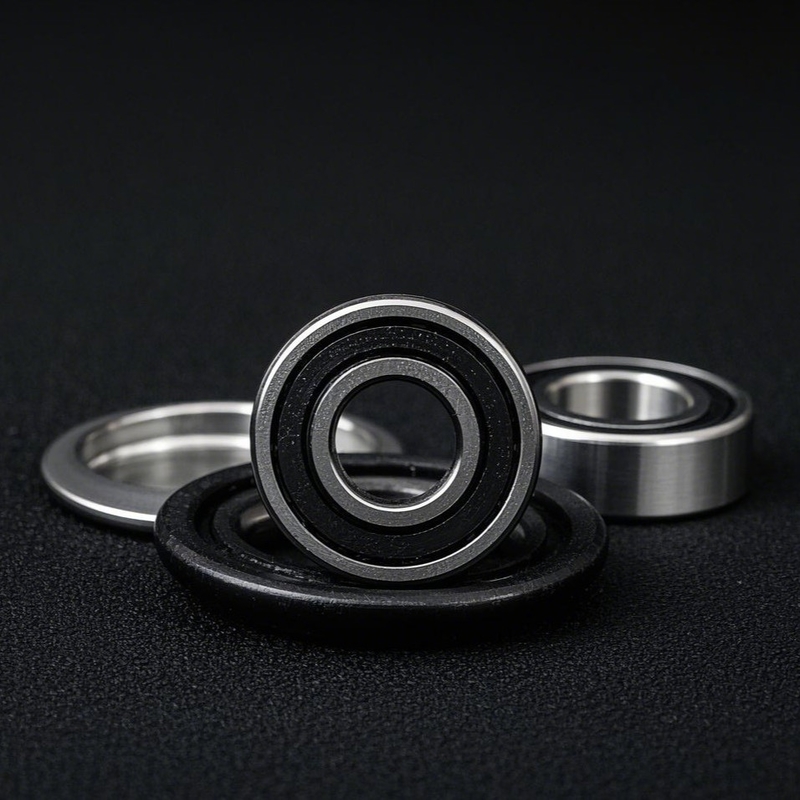

6306 2RS C0 Deep Groove Ball Bearings Radial Roller Single Row Sealed 30*72*19mm Harvest
The 6306 2RS bearing features a single row of balls and a deep groove raceway in the outer ring, renowned for its robustness and durability. It can offer a highly adaptable and efficient solution for a multitude of mechanical applications. Here’s a detailed introduction to this popular bearing type:
| Bearing Number | Dimensions(mm) | Basic Load Rating(N) | Limiting Speed(rpm) | Weight(Kg) | |||||
| Inner Diameter | Outer Diameter | Width | Chamfer | Dynamic | Static | Grease | Oil | ||
| d | D | B | r(min) | Cr | Cor | Non-contact | Non-contact | Reference | |
| 6306 2RS | 30 | 72 | 19 | 1.1 | 26700 | 15000 | 6700 | / | 0.349 |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage | Steel |
| Lubrication | Grease |
| Measurement Unit | Metric |
| Seal Type | ZZ(2RS,2RZ, open types are available) |
| Temperature Range | -40°C ~ +180°C |
| CERTIFICATE | RoHS, IATF16949:2016 |
| Feature | Long Life,Low Noise,High Speed |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
| Size | Standard,For custom sizes ,please contact us |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Tolerance Class | P6,P0 |
| Radial Clearance | C0 |
Requirements for Bearings in Harvest
A harvester typically uses over 100 sets of bearings, with the following requirements for these bearings:
What's the Performance Features of 6306 2RS Bearings in Harvester?
The 6306 2RS bearing is ideally suited for harvesters, offering reliable performance at low speeds with a wide operating temperature range from -20°C to 70°C. Its double rubber seals (2RS) provide excellent water and dust resistance, crucial for harsh farming conditions. Built for long service life and capable of withstanding significant loads, this bearing ensures durable and low-maintenance operation in agricultural machinery.
What's the Applications of the 6306 2RS Bearing?
The 6306 2RS bearing, featuring robust rubber seals and a deep groove design, is widely utilized across various industries for its reliability and versatility. It ensures smooth and quiet operation in home appliances such as washing machines and refrigerators, supports efficient performance in consumer electronics like air conditioners and vacuum cleaners, and facilitates reliable operation in industrial equipment including conveyor systems, pumps, and fans. Within the automotive sector, it enhances electric motors, power steering systems, and HVAC units, while in agricultural machinery, it supports tractors, harvesters, and irrigation systems. Its versatile design makes it an essential component for dependable, low-noise performance across these diverse applications.
If you need further details or have other questions, feel free to ask!
