Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 6201 ZZ / 2Z
Payment & Shipping Terms
Minimum Order Quantity: 100000
Price: Please contact us
Packaging Details: plastic tub,carton,pallet
Delivery Time: 30 days
Supply Ability: 2 million pcs per month
Part Number: |
6201 ZZ C0 |
Type: |
Ball Bearing |
Structure: |
Deep Groove |
Number Of Row: |
Single Row |
Vibration: |
Z3, Z4 |
Noise: |
V3, V4 |
Precision: |
P6, P0 |
Clearance: |
C0,C2,C3,C4,EM |
Part Number: |
6201 ZZ C0 |
Type: |
Ball Bearing |
Structure: |
Deep Groove |
Number Of Row: |
Single Row |
Vibration: |
Z3, Z4 |
Noise: |
V3, V4 |
Precision: |
P6, P0 |
Clearance: |
C0,C2,C3,C4,EM |

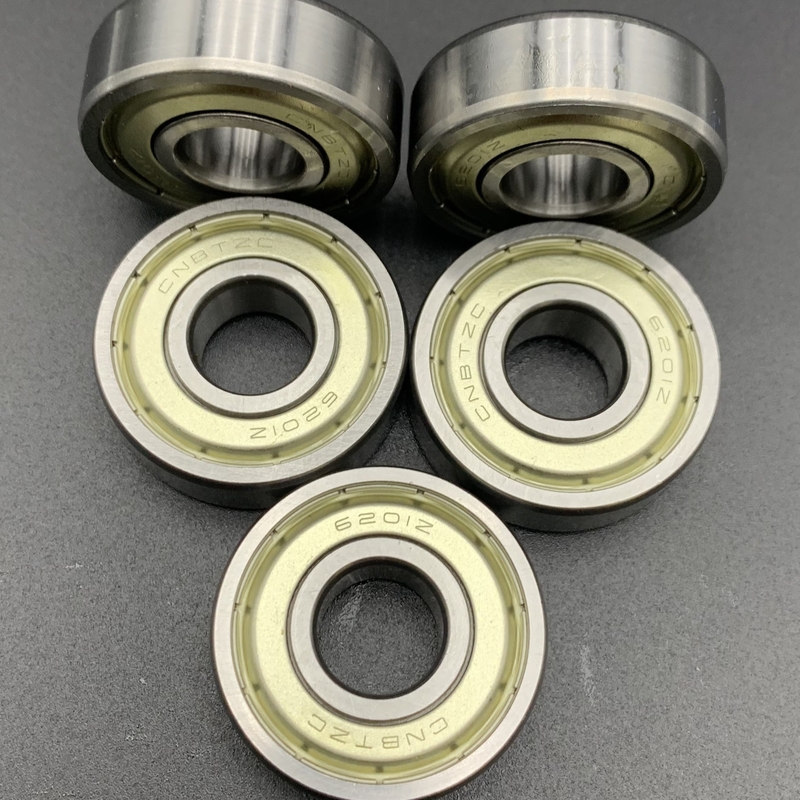

6201 ZZ C0 Deep Groove Ball Bearings Single Row 12*32*10mm Washing Machine Dryer
6201 ZZ C0 Deep Groove Ball Bearings Single Row 12*32*10mm Washing Machine/Dryer
The 6201 ZZ bearing is a widely used deep groove ball bearing, known for its simplicity, reliability, and versatility. Here’s a detailed introduction to this popular bearing type:
| Bearing Number | Dimensions(mm) | Basic Load Rating(N) | Limiting Speed(rpm) | Weight(Kg) | |||||
| Inner Diameter | Outer Diameter | Width | Chamfer | Dynamic | Static | Grease | Oil | ||
| d | D | B | r(min) | Cr | Cor | Non-contact | Non-contact | Reference | |
| 6201 ZZ | 12 | 32 | 10 | 0.6 | 6800 | 3050 | 17000 | / | 0.036 |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage | Steel |
| Lubrication | Grease |
| Measurement Unit | Metric |
| Seal Type | ZZ(2RS,2RZ, open types are available) |
| Temperature Range | -30°C ~ +150°C |
| CERTIFICATE | RoHS, IATF16949:2016 |
| Feature | Long Life,Low Noise,High Speed |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
| Size | Standard,For custom sizes ,please contact us |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Tolerance Class | P6,P0 |
| Radial Clearance | C0 |
Requirements for Bearings in Laundry Machines(Washing Machines and Dryers).
Laundry machines (washing machines and dryers) typically use two sets of bearings, with the following requirements:
Low Noise Operation:
Bearings must operate without unusual noises and maintain low decibel levels to ensure quiet operation.
Long Service Life:
Drum washing machine bearings require a very high lifespan, with a minimum of 2,500 simulated spin cycles under load and centrifugal force.
Speed Requirements:
Agitator-type washing machines: The motor speed is generally around 1,400 RPM.
Drum washing machines with BLDC motors:
No-load speed: Typically reaches 16,000 RPM.
Load speed: Around 12,000 RPM.
Variable Frequency Operation:
For models with variable frequency drives, bearings must have high durability and resistance to micro-wear to meet the stringent lifespan requirements.
What's the Performance Features of 6201 ZZ Bearings in Washing Machine / Dryer?
The 6201 ZZ bearing is well-suited for washing machines and dryers, offering quiet operation with low decibel levels, a long service life enduring at least 2,500 simulated spin cycles under load, and high-speed capability supporting speeds up to 16,000 RPM for no-load and around 12,000 RPM under load. Its metal shields provide effective protection against contaminants and ensure efficient lubrication retention, enhancing durability and resistance to micro-wear in variable frequency drive applications. This makes it reliable and efficient for the demanding operations of modern laundry machines.
What's the Applications of the 6201ZZ Bearing?
The 6201ZZ bearing is versatile and widely used across various sectors due to its quiet operation, effective contamination protection, moderate load capacity, and high-speed performance. It finds application in home appliances like air conditioners, washing machines, refrigerators, and dishwashers for smooth and quiet operation. In industrial equipment, it supports conveyor systems, pumps, and fans for efficient and reliable performance. Within the automotive industry, it is used in electric motors, power steering, and blower motors for smooth and quiet function. Office equipment such as printers, copiers, and scanners benefit from its precise operation, while medical devices like diagnostic machines and laboratory instruments rely on it for accurate and consistent performance. Additionally, it is found in power tools and lawn equipment for durability and reliability. This makes the 6201ZZ bearing an essential component in a broad range of applications where dependable and quiet operation is crucial.
