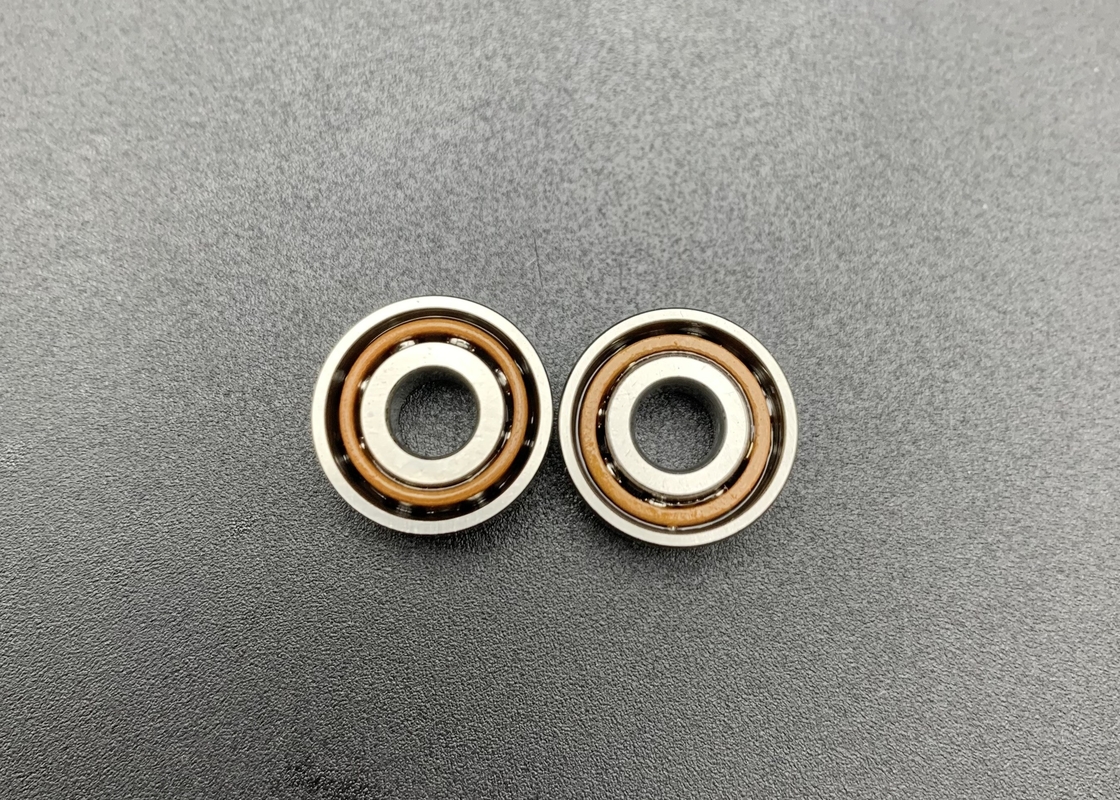

705AC High Precision Miniature Angular Contact Bearings Single Row 5x14x5mm

705AC High Precision Miniature Angular Contact Ball Bearings Single Row 9x26x8mm

Design Features of the 705 AC High Precision Angular Contact Bearing

The 705 AC Bearing is crafted from high-quality materials and manufactured to exacting precision standards. This super-precise angular contact ball bearing is ideal for high-speed spindles, precision tools, and any application where accuracy and speed are critical.

Dimensions:

Bore Diameter: 5 mm Outer Diameter: 14 mm Width: 5 mm

Where Is the 705AC Bearing Mainly Used?

The 705 AC (Angular Contact) ball bearing, finds extensive use across multiple industries due to its design features and performance characteristics. The 705 AC bearing is particularly suited for applications requiring high precision, speed, and reliability. Below are some of the primary application areas:

1. Machine Tool Spindles:

   • Utilized in CNC machines, grinders, and other precision machining equipment, ensuring tools operate with high accuracy and efficiency.

2. High-Speed Machinery:

   • Applied in drilling and milling machines that require rapid rotations with minimal vibration, ensuring stable and precise machining processes.

3. Aerospace Components:

   • Essential in aerospace parts such as gyroscopes, actuators, and jet engines, where it can maintain high precision and stability under extreme conditions.

4. Medical Equipment:

   • Used in high-precision medical devices like dental drills, CT scanners, and MRI machines, where accuracy and reliability are critical.

5. Semiconductor Manufacturing:

   • Plays a crucial role in semiconductor manufacturing equipment, especially during wafer processing, which requires exact and rapid movements.

6. Robotics and Automation:

   • Employed in robotic joints and other automation systems to ensure precise and repeatable motion.

7. Precision Instruments:

   • Found in various measuring instruments, optical devices, and other equipment that demand high precision and stability.

8. Other High-End Manufacturing:

   • Including but not limited to precision printing equipment, textile machinery, and any application where rotating components have strict performance requirements.

What is the Performance of the 705 AC Angular Contact Ball Bearing?

High-Speed Capabilities

• Fast and Efficient Operation: The 705 AC bearing is designed for high-speed applications, capable of operating without significant heat buildup or excessive wear. It effectively manages thermal energy and minimizes friction, making it ideal for continuous, high-speed tasks.

Exceptional Precision

• Incredibly Accurate: Manufactured to ultra-tight tolerances (P4 or P4A class), this bearing ensures highly accurate operation. Precise engineering minimizes any unwanted movement, delivering smooth and reliable performance essential for precision applications.

Enhanced Rigidity and Stability

• Robust and Stable: Offering superior axial and radial rigidity, the 705 AC bearing remains stable even under varying loads. This stability is crucial for maintaining precision in demanding applications such as machine tool spindles and aerospace components.

Advanced Material Use

• Durable Construction: Constructed from top-grade materials that resist wear and perform reliably at high speeds and temperatures. These materials enhance the bearing's lifespan and ensure long-term reliability, critical for high-performance environments.

Low Friction and Heat Dissipation

• Efficient Cooling: Designed to minimize internal friction and efficiently dissipate heat. This not only extends the bearing's life but also reduces maintenance downtime, enhancing overall operational efficiency.

Load Capacity

• Versatile Load Handling: The 705 AC bearing can manage both axial (thrust) and radial loads effectively. Its ability to handle combined loads makes it versatile and dependable for various applications, ensuring consistent performance under different load conditions.

Durability and Longevity

• Long-lasting Reliability: Thanks to advanced manufacturing techniques and premium materials, the 705 AC bearing offers extended operational life. Regular maintenance can further enhance its durability, making it a cost-effective choice for challenging industrial environments.
