Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: S7009 ACB/HCP4A
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 2-4 weeks
Payment Terms: L/C,T/T
Supply Ability: 200000pcs per month
Part Number: |
S7009 ACB/HCP4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Sealed,Seal On Both Sides,2RZ |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease |
Replaceable With: |
SKF, NSK S7009A5SN24V1VTRP4 |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed B |
Contact Type: |
Normal Contact (two-point Contact) |
Part Number: |
S7009 ACB/HCP4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Sealed,Seal On Both Sides,2RZ |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease |
Replaceable With: |
SKF, NSK S7009A5SN24V1VTRP4 |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed B |
Contact Type: |
Normal Contact (two-point Contact) |

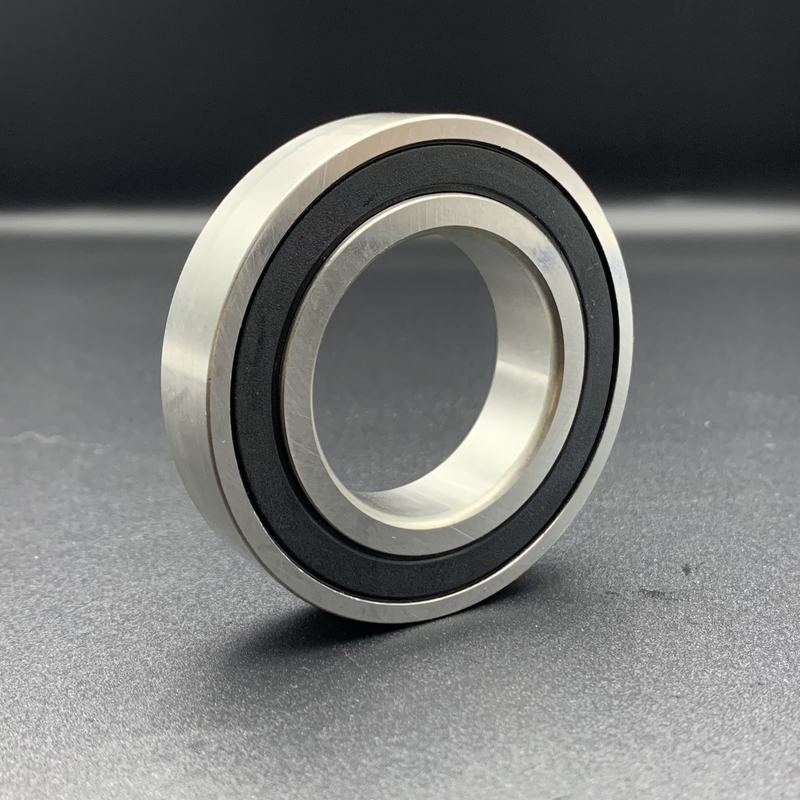

S7009 ACB/HCP4A 45*75*16 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls High Speed
Super-precision, high-speed B design, single row angular contact ball bearing with seal
The S7009 ACB/HCP4A bearing,bore diameter is 45 mm, outside diameter is 75 mm,width is 16 mm,featuring precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | S7009 ACB/HCP4A | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 45 mm |
| Inner Bore Diameter Tolerance | -0.006mm to 0 | |
| Outer Bore Diameter (D) | 75 mm | |
| Outer Bore Diameter Tolerance | -0.007mm to 0 | |
| Width (B) | 16 mm | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 25° (15°,40° Available) |
| Material | Hybrid (Chrome Steel Rings, Ceramic Balls) | |
| Cage Material | Phenolic | |
| Number of Rows | 1 Single Row | |
| Seal Type | Seal on both sides | |
| Temperature Range | -30°C to 150°C | |
| Lubrication | Grease | |
| Tolerance Class | P4A better than P4 | |
| Weight | 0.25 kg | |
| Matched Arrangement | No | |
| Universal Matching Bearing | No | |
| Preload | Not applicable | |
| Load and Speed | Dynamic Radial Load | 9040 N |
| Static Radial Load | 6800 N | |
| Reference Speed For Grease (r/min) | 28,000 rpm | |
| Limiting Speed For Oil(r/min) | 43,000 rpm | |
What's the Performance Features of S7009 ACB/HCP4A Bearing?
The S7009 ACB/HCP4A bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.
What's the Applications of the S7009 ACB/HCP4A Bearing?
The S7009 ACB/HCP4A bearing, is a high-precision angular contact ball bearing , featuring hybrid ceramic ball design and P4A grade accuracy. It is primarily used in the following fields:
1. Precision Machine Tools
Used in machine tool spindles and screw drives for high precision, speed, and stability .
2. Aerospace
Suitable for reliable, extreme-environment components like aircraft transmission systems.
3. High-Speed Motors and Instruments
Ideal for high-speed motor rotors and precision instruments due to low vibration and high-speed capability.
4. Semiconductor and Automation
Used in semiconductor equipment and robots for precise positioning and minimal thermal deformation, such as in linear actuators or joints.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
If you need more detailed information , feel free to ask!
