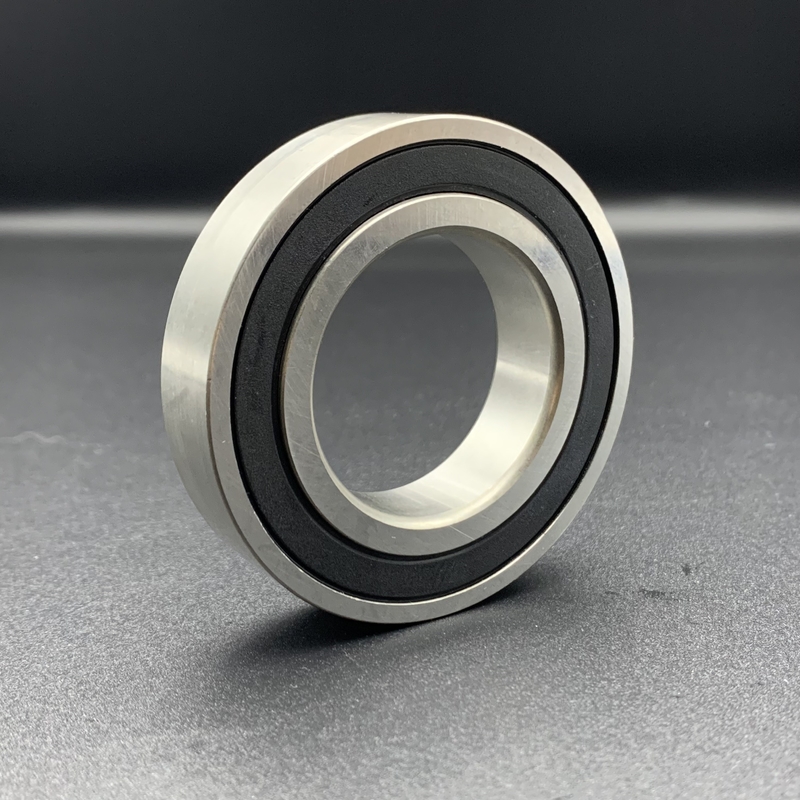

S7208 ACD/HCP4A Super Precision Single Row Angular Contact Ball Bearing 7208 2Z

S7208 ACD/HCP4A 40*80*18 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Hybrid Bearings Ceramic Balls

Super-precision, high-capacity, single row angular contact ball bearing with balls with seals

The S7208 CD/HCP4A bearing,with a bore diameter of 40 mm,outside diameter of 80 mm,and width of 18 mm,features precise dimensions, high static load capacity, and is manufactured to the P4A precision grade. Equipped with hybrid ceramic balls, this bearing delivers superior performance and reliability, making it ideal for applications that require high rotational accuracy and stability.

What's the Performance Features of S7208 ACD/HCP4A Bearing?

The S7208 ACD/HCP4A angular contact ball bearing is manufactured to P4A precision grade standards, excels in high-precision and high-performance applications. It handles both radial and axial loads simultaneously, supports high-speed operation with stability, minimizes torque and friction for energy efficiency, and offers enhanced rigidity for accuracy under heavy loads. Built with hybrid ceramic balls, this durable bearing ensures extended service life and effective performance across a wide temperature range, making it ideal for applications requiring superior rotational accuracy and reliability.

What's the Applications of the S7208 ACD/HCP4A Bearing?

The S7208 ACD/HCP4A bearing, a precision angular contact ball bearing , is primarily designed for high-precision and high-speed industrial applications. Its application areas can be summarized as follows:

1. Machine Tools

Spindles: High rigidity and speed (up to 19,000 r/min with grease), suitable for lathes, milling machines, and grinding machines.

2. Automation and Precision Instruments

Lab Equipment: Low vibration and high accuracy for mixers, optical scanners, and measuring instruments.

Robot Joints: Precision components for industrial robots and welding equipment.

3. Power Transmission and Motors

High-Speed Motors: Supports very high speeds (up to 95,000 r/min with grease) for motor spindles.

Gearboxes: Used in machine tool gearboxes and printing machinery.

4. Special Industrial Equipment

Drying Equipment: For flash dryers and rotary dryers, handling high temperatures and continuous operation.

Fluid Machinery: Suitable for water pumps and air compressors under medium axial and radial loads.

5. Other Fields

Automotive Testing: High-frequency motors and vehicle shock absorber test benches.

Medical Devices: Precision dental drills and centrifuges.
