Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 71808 ACD/P4
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 2-4 weeks
Payment Terms: L/C,T/T
Supply Ability: 200000pcs per month
Part Number: |
71808 ACD/P4 Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK 7808A5TRP4 |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-capacity D |
Contact Type: |
Normal Contact (two-point Contact) |
Part Number: |
71808 ACD/P4 Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK 7808A5TRP4 |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-capacity D |
Contact Type: |
Normal Contact (two-point Contact) |

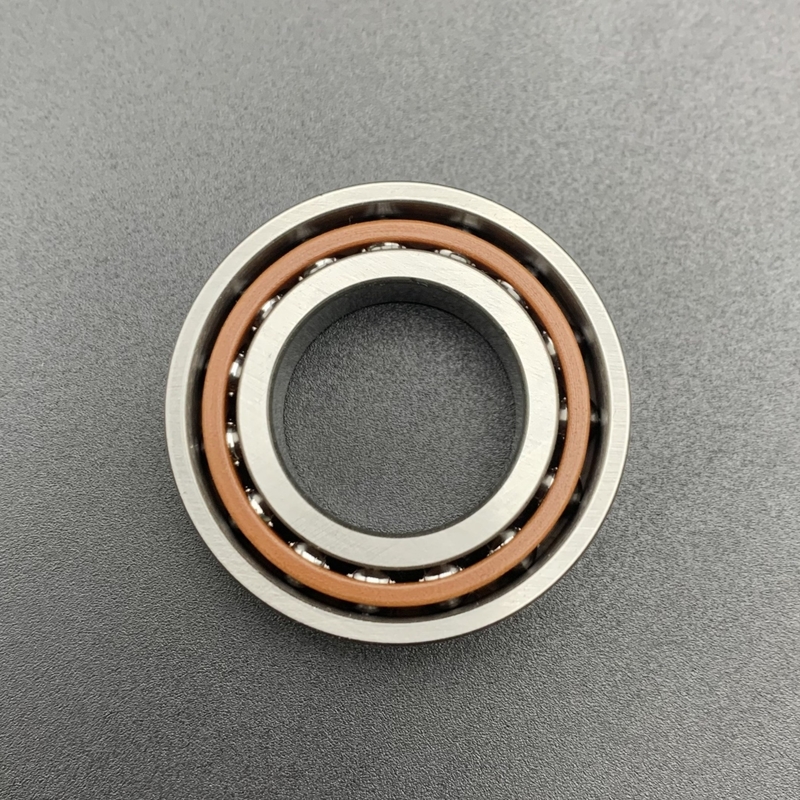

71808 ACD/P4 40*52*7 Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed
Super-precision, high-capacity, single row angular contact ball bearing
The 71808 ACD/P4 bearing,bore diameter is 40 mm, outside diameter is 52 mm,width is 7 mm,featuring precise dimensions, high static load capacity, P4 precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | 71808 ACD/P4 | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 40 mm |
| Inner Bore Diameter Tolerance | -0.006mm to 0 | |
| Outer Bore Diameter (D) | 52 mm | |
| Outer Bore Diameter Tolerance | -0.007mm to 0 | |
| Width (B) | 7 mm | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 25° (15°,40° Available) |
| Material | Chrome Steel | |
| Cage Material | Phenolic | |
| Number of Rows | 1 Single Row | |
| Seal Type | Open | |
| Temperature Range | -30°C to 150°C | |
| Lubrication | Grease or Oil | |
| Tolerance Class | P4 (ABEC-7) | |
| Weight | 0.032 kg | |
| Matched Arrangement | No | |
| Universal Matching Bearing | No | |
| Preload | Not applicable | |
| Load and Speed | Dynamic Radial Load | 4490 N |
| Static Radial Load | 4550 N | |
| Reference Speed For Grease (r/min) | 22,000 rpm | |
| Limiting Speed For Oil(r/min) | 34,000 rpm | |
What's the Performance Features of 71808 ACD/P4 Bearing?
The 71808 ACD/P4 angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.
What's the Applications of the 71808 ACD/P4 Bearing?
The 71808 ACD/P4 is designed for high-speed and high-precision applications, making it ideal for use in precision machinery and machine tools, industrial equipment for material handling and power transmission, chemical and metallurgical industries, testing and manufacturing devices, as well as special scenarios requiring low friction and wear resistance such as printing machinery and elevator systems. Its ability to handle complex load environments and high fatigue loads ensures reliable performance across a wide range of demanding industrial applications.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
