Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: S71907 CE/P4A
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 2-4 weeks
Payment Terms: L/C,T/T
Supply Ability: 200000pcs per month
Part Number: |
S71907 CE/P4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Sealed,Seal On Both Sides,2RZ |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease |
Replaceable With: |
SKF, NSK S7907CTRV1VP4 |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed E |
Contact Type: |
Normal Contact (two-point Contact) |
Part Number: |
S71907 CE/P4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Sealed,Seal On Both Sides,2RZ |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease |
Replaceable With: |
SKF, NSK S7907CTRV1VP4 |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed E |
Contact Type: |
Normal Contact (two-point Contact) |

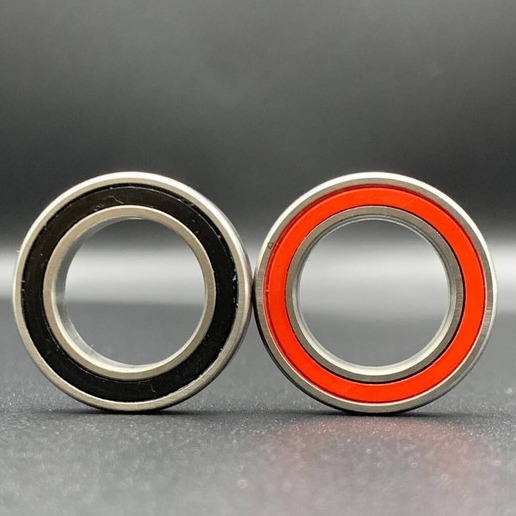

S71907 CE/P4A 35*55*10 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed
Super-precision, high-speed E design, single row angular contact ball bearing with seals
The S71907 CE/P4A bearing,bore diameter is 35 mm, outside diameter is 55 mm,width is 10 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | S71907 CE/P4A | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 35 mm |
| Inner Bore Diameter Tolerance | -0.006mm to 0 | |
| Outer Bore Diameter (D) | 55 mm | |
| Outer Bore Diameter Tolerance | -0.007mm to 0 | |
| Width (B) | 10 mm | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 15° (25°,40° Available) |
| Material | Chrome Steel | |
| Cage Material | Phenolic | |
| Number of Rows | 1 Single Row | |
| Seal Type | Seal on both sides | |
| Temperature Range | -30°C to 150°C | |
| Lubrication | Grease | |
| Tolerance Class | P4A better than P4 (ABEC-7) | |
| Weight | 0.074 kg | |
| Matched Arrangement | No | |
| Universal Matching Bearing | No | |
| Preload | Not applicable | |
| Load and Speed | Dynamic Radial Load | 7610 N |
| Static Radial Load | 4750 N | |
| Reference Speed For Grease (r/min) | 36,000 rpm | |
| Limiting Speed For Oil(r/min) | 54,000 rpm | |
What's the Performance Features of S71907 CE/P4A Bearing?
The S71907 CE/P4A angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.
What's the Applications of the S71907 CE/P4A Bearing?
The S71907 CE/P4A precision angular contact ball bearing is distinguished by its high-speed capability, high load capacity, and sealed design with a 15° contact angle, making it ideal for applications requiring high precision and stability. It is commonly used in machine tools, material handling equipment, and automation machinery for industrial manufacturing; environmental protection devices and medical equipment for specialized needs; heavy machinery and chemical equipment for demanding conditions; as well as in agriculture, food processing, and construction sectors, showcasing its versatility across a wide range of industries.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
