Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 7007 CB/P4A
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 2-3 weeks
Payment Terms: L/C,T/T
Supply Ability: 500000pcs per month
Part Number: |
7007 CB/P4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed B |
Contact Type: |
Normal Contact (two-point Contact) |
Part Number: |
7007 CB/P4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed B |
Contact Type: |
Normal Contact (two-point Contact) |

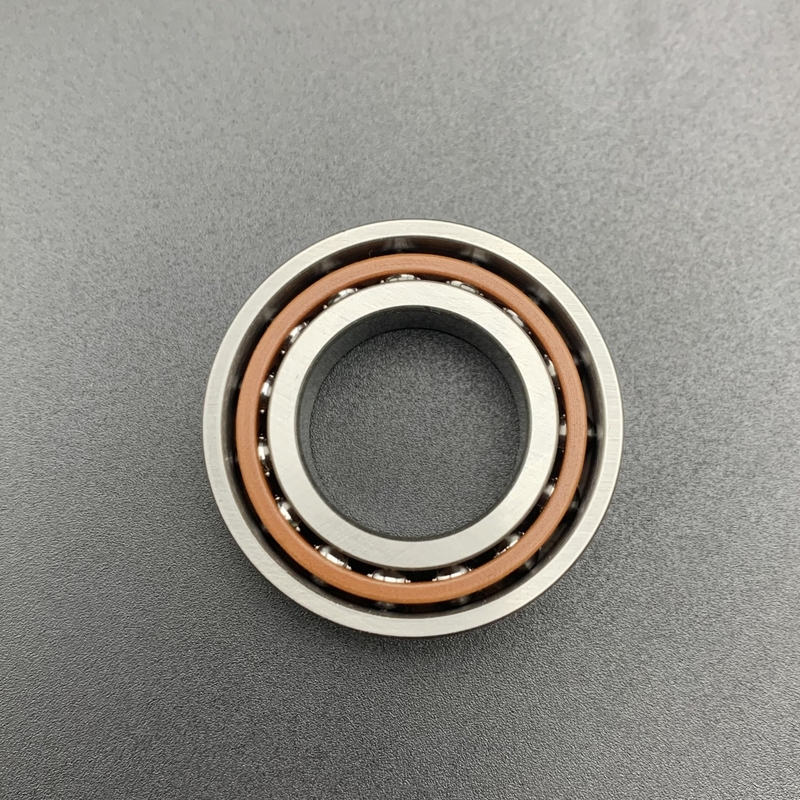

7007 CB/P4A 35*62*14 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed
Super-precision, high-speed B design, single row angular contact ball bearing
The 7007 CB/P4A bearing,bore diameter is 35 mm, outside diameter is 62 mm,width is 14 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | 7007 CB/HCP4A | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 35 mm |
| Inner Bore Diameter Tolerance | -0.006mm to 0 | |
| Outer Bore Diameter (D) | 62 mm | |
| Outer Bore Diameter Tolerance | -0.007mm to 0 | |
| Width (B) | 14 mm | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 15° (25°,40° Available) |
| Material | Chrome Steel | |
| Cage Material | Phenolic | |
| Number of Rows | 1 Single Row | |
| Seal Type | Open | |
| Temperature Range | -30°C to 150°C | |
| Lubrication | Grease or Oil | |
| Tolerance Class | P4A better than P4 | |
| Weight | 0.17 kg | |
| Matched Arrangement | No | |
| Universal Matching Bearing | No | |
| Preload | Not applicable | |
| Load and Speed | Dynamic Radial Load | 6890 N |
| Static Radial Load | 4800 N | |
| Reference Speed For Grease (r/min) | 32,000 rpm | |
| Limiting Speed For Oil(r/min) | 48,000 rpm | |
What's the Performance Features of 7007 CB/P4A Bearing?
The 7007 CB/P4A bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.
What's the Applications of the 7007 CB/P4A Bearing?
The 7007 CB/P4A high-precision angular contact ball bearing is designed for applications requiring high speed, accuracy, and rigidity. It is extensively used in machine tool spindle systems for CNC machines and machining centers, enhancing surface quality and operational precision. This bearing also supports high-speed electric spindles with oil-air lubrication, ensuring stability at extreme speeds. Additionally, it is found in precision instruments and industrial equipment like printing machinery and testing devices, as well as in semiconductor manufacturing for dust-free environments. Furthermore, its reliability makes it suitable for aerospace and medical devices, where it must withstand extreme conditions and ensure long-life, low-noise performance. Its versatility and performance characteristics make it essential across a wide range of demanding industries.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
