Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 71907 CB/P4A
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 2-4 weeks
Payment Terms: L/C,T/T
Supply Ability: 200000pcs per month
Part Number: |
71907 CB/P4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed B |
Contact Type: |
Normal Contact (two-point Contact) |
Part Number: |
71907 CB/P4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed B |
Contact Type: |
Normal Contact (two-point Contact) |

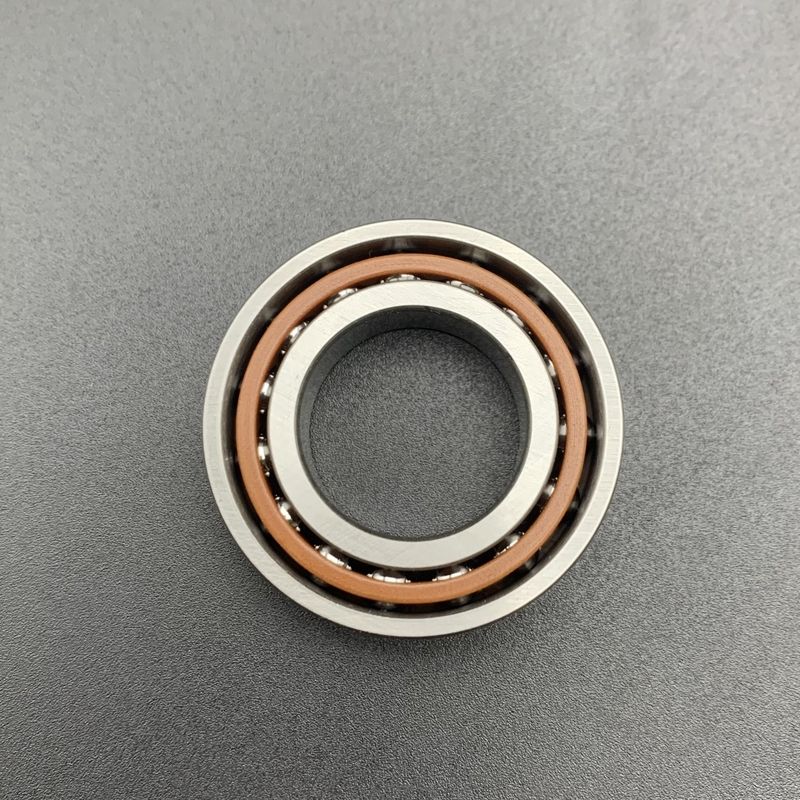

71907 CB/P4A 35*55*10 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed
Super-precision, high-speed B design, single row angular contact ball bearing
The 71907 CB/P4A bearing,bore diameter is 35 mm, outside diameter is 55 mm,width is 10 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | 71907 CB/P4A | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 35 mm |
| Inner Bore Diameter Tolerance | -0.006mm to 0 | |
| Outer Bore Diameter (D) | 55 mm | |
| Outer Bore Diameter Tolerance | -0.007mm to 0 | |
| Width (B) | 10 mm | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 15° (25°,40° Available) |
| Material | Chrome Steel | |
| Cage Material | Phenolic | |
| Number of Rows | 1 Single Row | |
| Seal Type | Open | |
| Temperature Range | -30°C to 150°C | |
| Lubrication | Grease or Oil | |
| Tolerance Class | P4A better than P4 (ABEC-7) | |
| Weight | 0.078 kg | |
| Matched Arrangement | No | |
| Universal Matching Bearing | No | |
| Preload | Not applicable | |
| Load and Speed | Dynamic Radial Load | 5070 N |
| Static Radial Load | 3650 N | |
| Reference Speed For Grease (r/min) | 34,000 rpm | |
| Limiting Speed For Oil(r/min) | 53,000 rpm | |
What's the Performance Features of 71907 CB/P4A Bearing?
The 71907 CB/P4A angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.
What's the Applications of the 71907 CB/P4A Bearing?
The 71907 CB/P4A precision angular contact ball bearing is designed for demanding industrial applications requiring high speed, high rigidity, and precise operation. It is extensively used in machine tool spindles for machining centers and CNC machines, providing stability and accuracy under high-speed conditions; in industrial equipment such as textile machinery, printing, and packaging devices, and chemical and food processing equipment where low friction and corrosion resistance are essential; in high-speed power transmission systems like motor spindles and wind turbine generators, benefiting from hybrid ceramic ball designs to reduce lubricant load and increase speed; and in precision instruments and laboratory equipment where its high precision and low vibration characteristics ensure accurate experimental data. This bearing excels across a broad range of applications, delivering reliable performance in diverse operational environments.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
