Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 71906 CB/P4A
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 2-4 weeks
Payment Terms: L/C,T/T
Supply Ability: 200000pcs per month
Part Number: |
71906 CB/P4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed B |
Contact Type: |
Normal Contact (two-point Contact) |
Part Number: |
71906 CB/P4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed B |
Contact Type: |
Normal Contact (two-point Contact) |

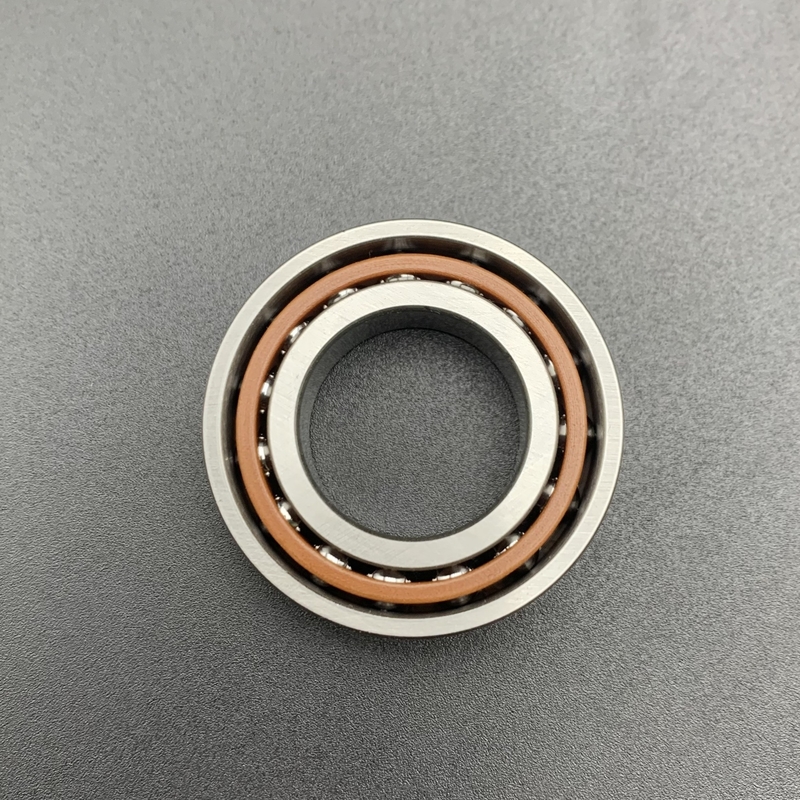

71906CB/P4A 30*47*9 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed
Super-precision, high-speed B design, single row angular contact ball bearing
The 71906 CB/P4A bearing,bore diameter is 30 mm, outside diameter is 47 mm,width is 9 mm,featuring precise dimensions, high static load capacity, P4A precision grade,delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | 71906 CB/P4A | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 30 mm |
| Inner Bore Diameter Tolerance | -0.005mm to 0 | |
| Outer Bore Diameter (D) | 47 mm | |
| Outer Bore Diameter Tolerance | -0.006mm to 0 | |
| Width (B) | 9 mm | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 15° (25°,40° Available) |
| Material | Chrome Steel | |
| Cage Material | Phenolic | |
| Number of Rows | 1 Single Row | |
| Seal Type | Open | |
| Temperature Range | -30°C to 150°C | |
| Lubrication | Grease or Oil | |
| Tolerance Class | P4A better than P4 (ABEC-7) | |
| Weight | 0.047 kg | |
| Matched Arrangement | No | |
| Universal Matching Bearing | No | |
| Preload | Not applicable | |
| Load and Speed | Dynamic Radial Load | 4880 N |
| Static Radial Load | 3150 N | |
| Reference Speed For Grease (r/min) | 40,000 rpm | |
| Limiting Speed For Oil(r/min) | 60,000 rpm | |
What's the Performance Features of 71906 CB/P4A Bearing?
The 71906 CB/P4A angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.
What's the Applications of the 71906 CB/P4A Bearing?
The 71906 CB/P4A bearing,high-precision angular contact ball bearing is designed for applications requiring high speed, precision, and reliability. It is used in machine tool spindle systems for precise and stable operation during high-speed cutting, in printing and packaging machinery for accurate registration, in chemical and food processing equipment with optional sealing for corrosion resistance, in aerospace and precision instruments where minimal error is critical, and in wind energy and industrial gearboxes to reduce vibration and enhance transmission efficiency. This bearing excels across a wide range of demanding industries, ensuring superior performance and longevity.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
