Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 6202 2RZ
Payment & Shipping Terms
Minimum Order Quantity: 100000
Price: Please contact us
Packaging Details: plastic tub,carton,pallet
Delivery Time: 30 days
Supply Ability: 1 million pcs per month
Part Number: |
6202 2RZ C0 Deep Groove Ball Bearings |
Type: |
Ball Bearing |
Structure: |
Deep Groove |
Number Of Row: |
Single Row |
Vibration: |
Z3, Z4 |
Noise: |
V3, V4 |
Precision: |
P6, P5 |
Clearance: |
C0,C2,C3,C4,EM |
Part Number: |
6202 2RZ C0 Deep Groove Ball Bearings |
Type: |
Ball Bearing |
Structure: |
Deep Groove |
Number Of Row: |
Single Row |
Vibration: |
Z3, Z4 |
Noise: |
V3, V4 |
Precision: |
P6, P5 |
Clearance: |
C0,C2,C3,C4,EM |

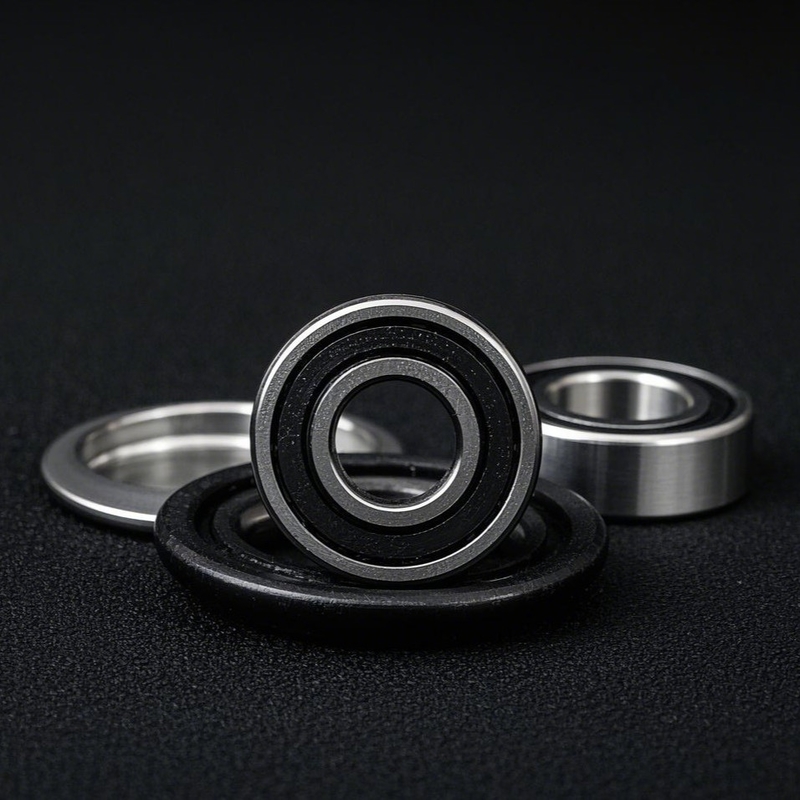

6202 2RZ Deep Groove Ball Bearing Single Row Radial 15*35*11mm For Bathtub Pumps
The 6202 2RZ bearing is a widely used deep groove ball bearing, known for its simplicity, reliability, and versatility. Here’s a detailed introduction to this popular bearing type:
| Bearing Number | Dimensions(mm) | Basic Load Rating(N) | Limiting Speed(rpm) | Weight(Kg) | |||||
| Inner Diameter | Outer Diameter | Width | Chamfer | Dynamic | Static | Grease | Oil | ||
| d | D | B | r(min) | Cr | Cor | Non-contact | Non-contact | Reference | |
| 6202 2RZ | 15 | 35 | 11 | 0.6 | 7600 | 3750 | 14000 | / | 0.045 |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage | Steel |
| Lubrication | Grease |
| Measurement Unit | Metric |
| Seal Type | ZZ(2RS,2RZ, open types are available) |
| Temperature Range | -30°C ~ +150°C |
| CERTIFICATE | RoHS, IATF16949:2016 |
| Feature | Long Life,Low Noise,High Speed |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
| Size | Standard,For custom sizes ,please contact us |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Tolerance Class | P6,P0 |
| Radial Clearance | C0 |
Requirements for Bearings in Bathtub Pumps.
Bathtub pumps typically require bearings that meet the following specifications:
What's the Performance Features of 6202 2RZ Bearings in Bathtub Pumps?
The 6202 2RZ bearing offers reliable performance in bathtub pumps, ensuring quiet operation to maintain a relaxing environment. It supports high-speed capability, operating efficiently at speeds up to 3000 RPM or higher as required by the pump design. The bearing functions reliably within an extensive temperature range of -20°C to +120°C, adapting well to varying thermal conditions. Its double rubber seals provide effective protection against water ingress and ensure lubricant retention, enhancing durability and reducing maintenance needs. This combination of features makes the 6202 2RZ bearing well-suited for the specific requirements of bathtub pumps.
What's the Applications of the 6202 2RZ Bearing?
The 6202 2RZ bearing,widely applied in the automotive industry for components like rear wheels and transmissions, it also supports general-purpose motors and home appliances in the electrical sector. Its precision and reliability make it ideal for instruments and meters, while its durability and load-carrying capacity are crucial in internal combustion engines. Found in construction machinery, railway vehicles, material handling equipment, agricultural machinery, and various industrial machines, this bearing ensures stable performance under heavy loads and harsh conditions, extending service life and maintaining efficiency across multiple sectors.
If you need more specific information or have further questions about the 6202 2RZ bearing, feel free to ask!
