Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 7006 ACE/P4A
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 2-3 weeks
Payment Terms: L/C,T/T
Supply Ability: 500000pcs per month
Part Number: |
7006 ACE/P4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed E |
Contact Type: |
Normal Contact (two-point Contact) |
Part Number: |
7006 ACE/P4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed E |
Contact Type: |
Normal Contact (two-point Contact) |

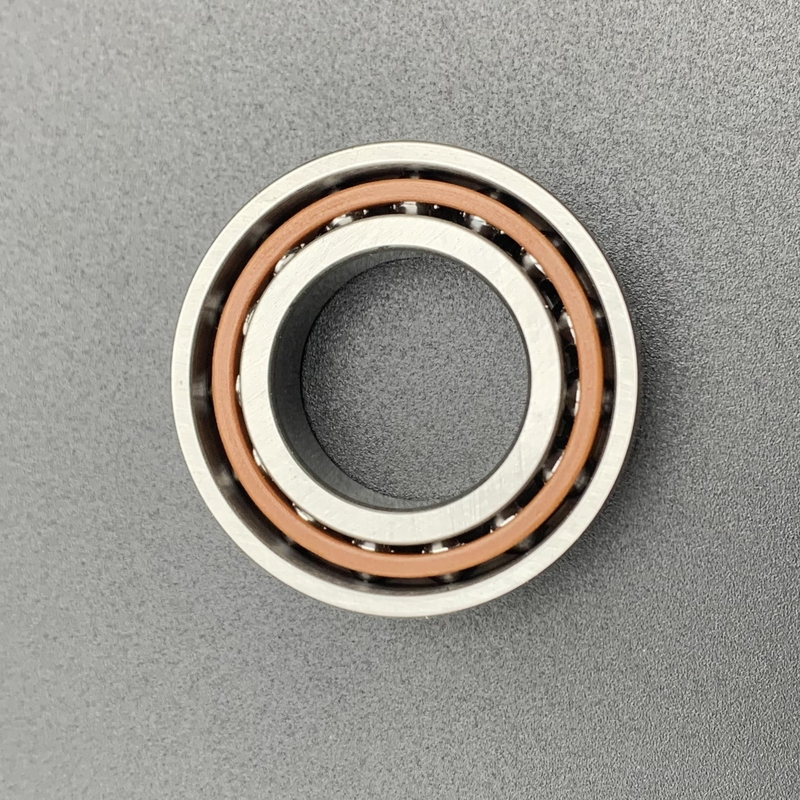

7006 ACE/P4A 30*55*13 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls High Speed
Super-precision, high-speed E design, single row angular contact ball bearing
The 7006 ACE/P4A bearing,bore diameter is 30 mm, outside diameter is 55 mm,width is 13 mm,featuring precise dimensions, high static load capacity, P4A precision grade,delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | 7006 ACE/P4A | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 30 mm |
| Inner Bore Diameter Tolerance | -0.005mm to 0 | |
| Outer Bore Diameter (D) | 55 mm | |
| Outer Bore Diameter Tolerance | -0.007mm to 0 | |
| Width (B) | 13 mm | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 25° (15°,40° Available) |
| Material | Chrome Steel | |
| Cage Material | Phenolic | |
| Number of Rows | 1 Single Row | |
| Seal Type | Open | |
| Temperature Range | -30°C to 150°C | |
| Lubrication | Grease or Oil | |
| Tolerance Class | P4A better than P4 | |
| Weight | 0.11 kg | |
| Matched Arrangement | No | |
| Universal Matching Bearing | No | |
| Preload | Not applicable | |
| Load and Speed | Dynamic Radial Load | 8840 N |
| Static Radial Load | 5000 N | |
| Reference Speed For Grease (r/min) | 35,000 rpm | |
| Limiting Speed For Oil(r/min) | 54,000 rpm | |
What's the Performance Features of 7006 ACE/P4A Bearing?
The 7006 ACE/P4A bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.
What's the Applications of the 7006 ACE/P4A Bearing?
The 7006 ACE/P4A bearing,is distinguished by its high-speed performance and low friction, making it ideal for a variety of precision machinery. It supports the core operations of electric spindles, ensuring stability and efficiency in high-speed machining centers and milling machines. This bearing also guarantees precision in high-speed internal cylindrical grinding machines and enhances the performance of woodworking machinery by enabling efficient tool rotation. Its versatility and reliability make it an essential component across these demanding applications, from ensuring accuracy in high-speed operations to supporting continuous, efficient production processes.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
