Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 71904 CE/P4A
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 2-4 weeks
Payment Terms: L/C,T/T
Supply Ability: 500000pcs per month
Part Number: |
71904 CE/P4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Oil Or Grease |
Replaceable With: |
SKF, NSK |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed E |
Contact Type: |
Normal Contact (two-point Contact) |
Part Number: |
71904 CE/P4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Oil Or Grease |
Replaceable With: |
SKF, NSK |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed E |
Contact Type: |
Normal Contact (two-point Contact) |

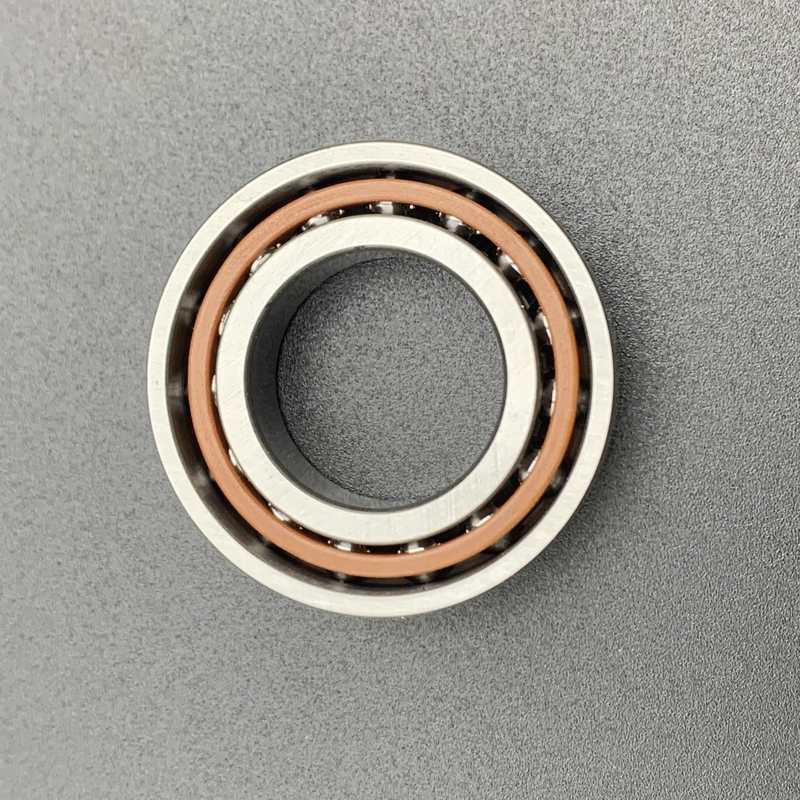

71904 CE/P4A 20*37*9 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed
Super-precision, high-speed E design, single row angular contact ball bearing
The 71904 CE/P4A bearing,bore diameter is 20 mm, outside diameter is 37 mm,width is 9 mm,featuring precise dimensions, high static load capacity, P4A precision grade,delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | 71904 CE/P4A | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 20 mm |
| Inner Bore Diameter Tolerance | -0.005mm to 0 | |
| Outer Bore Diameter (D) | 37 mm | |
| Outer Bore Diameter Tolerance | -0.006mm to 0 | |
| Width (B) | 9 mm | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 15° (25°,40° Available) |
| Material | Chrome Steel | |
| Cage Material | Phenolic | |
| Number of Rows | 1 Single Row | |
| Seal Type | Open | |
| Temperature Range | -30°C to 150°C | |
| Lubrication | Grease or oil | |
| Tolerance Class | P4A better than P4 (ABEC-7) | |
| Weight | 0.036 kg | |
| Matched Arrangement | No | |
| Universal Matching Bearing | No | |
| Preload | Not applicable | |
| Load and Speed | Dynamic Radial Load | 4880 N |
| Static Radial Load | 2400 N | |
| Reference Speed For Grease (r/min) | 56,000 rpm | |
| Limiting Speed For Oil(r/min) | 88,000 rpm | |
What's the Performance Features of 71904 CE/P4A Bearing?
The 71904 CE/P4A angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.
What's the Applications of the 71904 CE/P4A Bearing?
The 71904 CE/P4A bearing,distinguished for its high speed and precision, is widely applied across numerous industrial sectors. It supports stable and efficient operation in applications ranging from rubber laminating machines, plastic pipe filling equipment, and sandblasting devices in industrial machinery, to wire cutting tools in aerospace, grain processing machines in food industries, and specialized equipment like needle gear reducers, automatic pumps, and water jet cutters. Its versatility and reliability make it indispensable for ensuring precise, durable performance in diverse and demanding operational environments.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
