Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 71804 CD/P4
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 2-4 weeks
Payment Terms: L/C,T/T
Supply Ability: 500000pcs per month
Part Number: |
71804 CD/P4 Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-capacity D |
Contact Type: |
Normal Contact (two-point Contact) |
Part Number: |
71804 CD/P4 Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-capacity D |
Contact Type: |
Normal Contact (two-point Contact) |

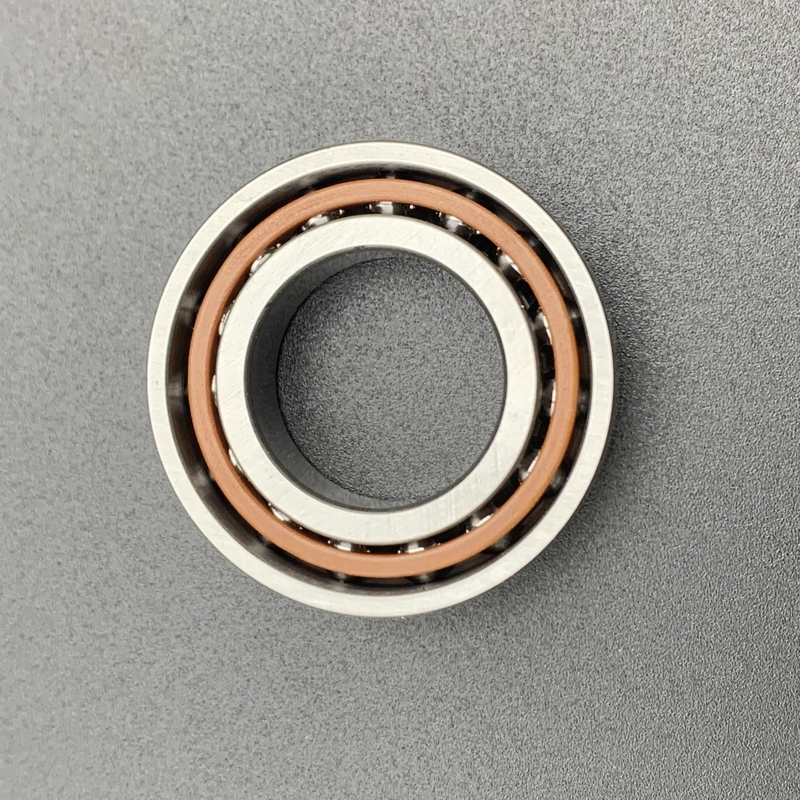

71804 CD/P4 20*32*7 Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed
Super-precision, high-capacity, single row angular contact ball bearing
The 71804 CD/P4 bearing,bore diameter is 20 mm, outside diameter is 32 mm,width is 7 mm,featuring precise dimensions, high static load capacity, P4 precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | 71804 CD/P4 | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 20 mm |
| Inner Bore Diameter Tolerance | -0.005mm to 0 | |
| Outer Bore Diameter (D) | 32 mm | |
| Outer Bore Diameter Tolerance | -0.006mm to 0 | |
| Width (B) | 7 mm | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 15° (25°,40° Available) |
| Material | Chrome Steel | |
| Cage Material | Phenolic | |
| Number of Rows | 1 Single Row | |
| Seal Type | Open | |
| Temperature Range | -30°C to 150°C | |
| Lubrication | Grease or Oil | |
| Tolerance Class | P4 (ABEC-7) | |
| Weight | 0.018 kg | |
| Matched Arrangement | No | |
| Universal Matching Bearing | No | |
| Preload | Not applicable | |
| Load and Speed | Dynamic Radial Load | 3900 N |
| Static Radial Load | 2650 N | |
| Reference Speed For Grease (r/min) | 45,000 rpm | |
| Limiting Speed For Oil(r/min) | 70,000 rpm | |
What's the Performance Features of 71804 CD/P4 Bearing?
The 71804 CD/P4 angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.
What's the Applications of the 71804 CD/P4 Bearing?
The 71804 CD/P4 bearing,is a high-precision angular contact ball bearing designed for demanding industrial applications, offering reliability and efficiency across various sectors. It supports operations in food processing, garment manufacturing, nonwoven fabric production, rubber laminating, cutting machines, crushing and piling machinery, tower cranes, kitchen ventilation systems, metallurgy, chemical fractional condensers, logistics loading machinery, medical monitoring devices, material testing machines, and printing die-cutting equipment. Its ability to handle significant loads, high speeds, and harsh conditions ensures stable and precise performance, making it crucial for enhancing the efficiency and quality of diverse industrial processes.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
