Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: S7003 CE/HCP4A
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 2-4 weeks
Payment Terms: L/C,T/T
Supply Ability: 500000pcs per month
Part Number: |
S7003 CE/HCP4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Sealed,Seal On Both Sides,2RZ |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease |
Replaceable With: |
SKF, NSK S7003CSN24TRV1VP4,7003 2RZ CE/HCP4A |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed E |
Contact Type: |
Normal Contact (two-point Contact) |
Part Number: |
S7003 CE/HCP4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Sealed,Seal On Both Sides,2RZ |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease |
Replaceable With: |
SKF, NSK S7003CSN24TRV1VP4,7003 2RZ CE/HCP4A |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed E |
Contact Type: |
Normal Contact (two-point Contact) |

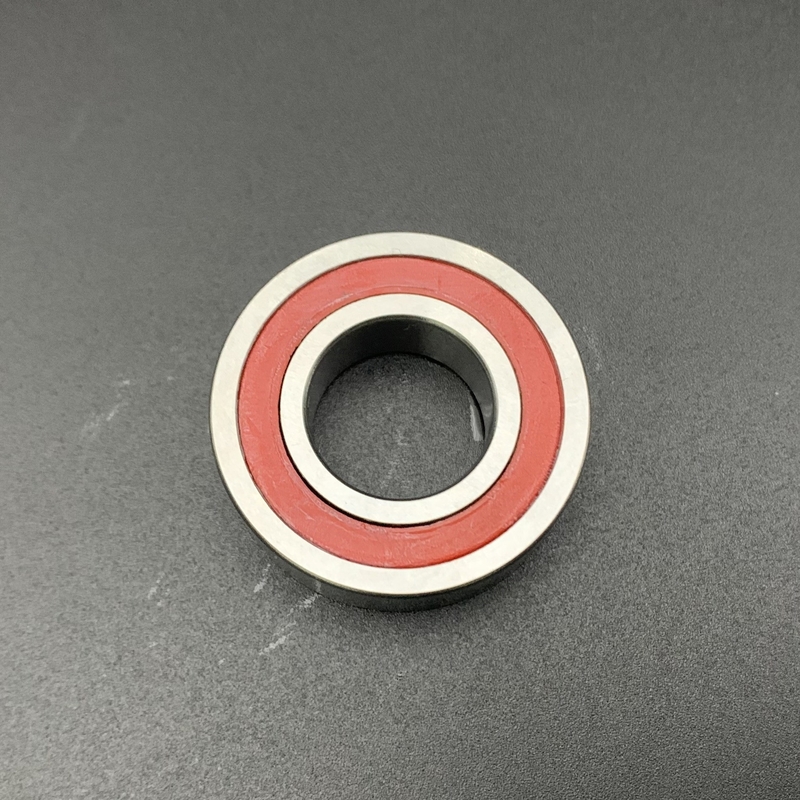

S7003 CE/HCP4A 17*35*10 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls High Speed
Super-precision, high-speed E design, single row angular contact ball bearing with seals
The S7003 CE/HCP4A bearing,bore diameter is 17 mm, outside diameter is 35 mm,width is 10 mm,featuring precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | S7003 CE/HCP4A | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 17 mm |
| Inner Bore Diameter Tolerance | -0.004mm to 0 | |
| Outer Bore Diameter (D) | 35 mm | |
| Outer Bore Diameter Tolerance | -0.006mm to 0 | |
| Width (B) | 10 mm | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 15° (25°,40° Available) |
| Material | Hybrid (Chrome Steel Rings, Ceramic Balls) | |
| Cage Material | Phenolic | |
| Number of Rows | 1 Single Row | |
| Seal Type | Seal on both sides | |
| Temperature Range | -30°C to 150°C | |
| Lubrication | Grease | |
| Tolerance Class | P4A better than P4 | |
| Weight | 0.032 kg | |
| Matched Arrangement | No | |
| Universal Matching Bearing | No | |
| Preload | Not applicable | |
| Load and Speed | Dynamic Radial Load | 5850 N |
| Static Radial Load | 2550 N | |
| Reference Speed For Grease (r/min) | 75,000 rpm | |
| Limiting Speed For Oil(r/min) | 115,000 rpm | |
What's the Performance Features of S7003 CE/HCP4A Bearing?
The S7003 CE/HCP4A bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.
What's the Applications of the S7003 CE/HCP4A Bearing?
The S7003 CE/HCP4A bearing,known for its superior performance and versatility, is crucial across a broad spectrum of industries. It supports high precision and efficiency in steel, aluminum, chemical, cement, and paper plants, enhances the reliability of wind turbines and heavy machinery, improves engine efficiency and transmission systems in automotive manufacturing, provides robust solutions in mining and metallurgy, ensures safe and efficient operations in port and elevator systems, and meets stringent requirements in plastic processing, compressors, machine tools, and transportation equipment. Its ability to deliver precision, stability, and durability makes it indispensable in various advanced technological applications.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
