Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 7003 ACD/P4AH
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 2-4 weeks
Payment Terms: L/C,T/T
Supply Ability: 500000pcs per month
Part Number: |
7003 ACD/P4AH Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-capacity D |
Contact Type: |
Normal Contact (two-point Contact) |
Part Number: |
7003 ACD/P4AH Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF, NSK |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-capacity D |
Contact Type: |
Normal Contact (two-point Contact) |

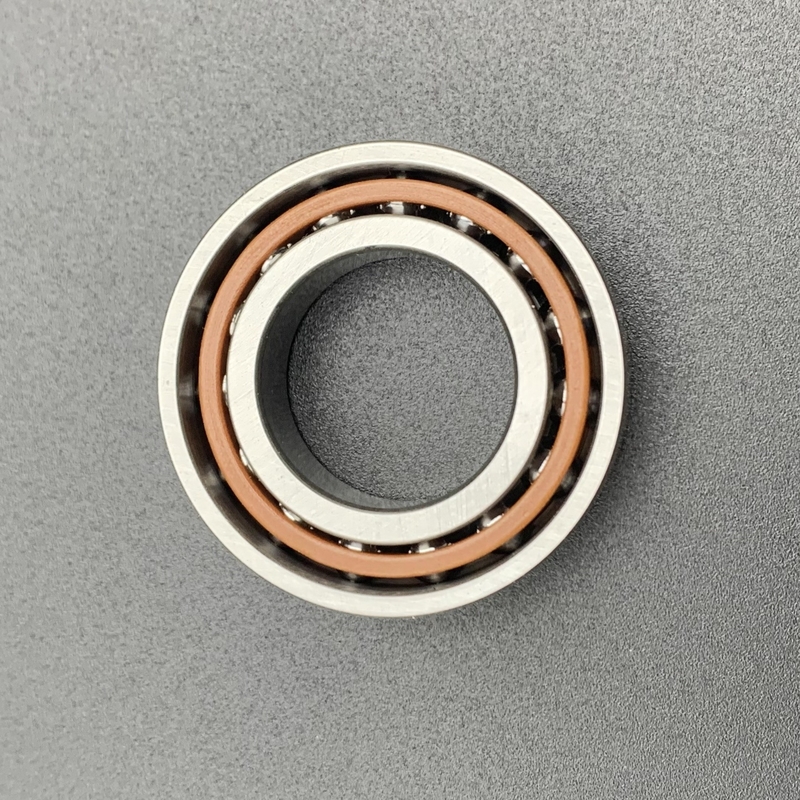

7003 ACD/P4AH 17*35*10 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed
Super-precision, high-capacity, single row angular contact ball bearing suitable for direct oil-air lubrication
The 7003 ACD/P4AH bearing,bore diameter is 17 mm, outside diameter is 35 mm,width is 10 mm,featuring precise dimensions, high static load capacity, P4A precision grade,delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | 7003 ACD/P4AH | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 17 mm |
| Inner Bore Diameter Tolerance | -0.004mm to 0 | |
| Outer Bore Diameter (D) | 35 mm | |
| Outer Bore Diameter Tolerance | -0.004mm to 0 | |
| Width (B) | 10 mm | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 25° (15°,40° Available) |
| Material | Chrome Steel | |
| Cage Material | Phenolic | |
| Number of Rows | 1 Single Row | |
| Seal Type | Open | |
| Temperature Range | -30°C to 150°C | |
| Special feature | Suitable for direct oil-air lubrication | |
| Tolerance Class | P4A better than P4 | |
| Weight | 0.038 kg | |
| Matched Arrangement | No | |
| Universal Matching Bearing | No | |
| Preload | Not applicable | |
| Load and Speed | Dynamic Radial Load | 6500 N |
| Static Radial Load | 3100 N | |
| Reference Speed For Grease (r/min) | 45,000 rpm | |
| Limiting Speed For Oil(r/min) | 70,000 rpm | |
What's the Performance Features of 7003 ACD/P4AH Bearing?
The 7003 ACD/P4AH bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.
What's the Applications of the 7003 ACD/P4AH Bearing?
The 7003 ACD/P4AH bearing,is a versatile component renowned for its high rigidity, precision, and efficiency, making it ideal for a wide range of applications. It supports key components in internal combustion engines for stable and efficient operation, enhances machining precision in machine tool spindles, ensures safety and reliability in hoists used in mining and construction, improves performance and durability in automotive transmission systems, and guarantees accuracy and stability in woodworking machinery. Additionally, this bearing is also utilized in extrusion machines, washing and dyeing equipment, tunnel boring machines, and other industrial machinery, demonstrating its broad applicability across various demanding industries.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
