Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: S7202 ACD/P4A
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 2-4 weeks
Payment Terms: L/C,T/T
Supply Ability: 500000pcs per month
Part Number: |
S7202 ACD/P4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Sealed,Seal On Both Sides,2RZ |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease |
Replaceable With: |
SKF, NSK S7202CTRV1VP4,7202 2RZ ACD/P4A |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-capacity D |
Contact Type: |
Normal Contact (two-point Contact) |
Part Number: |
S7202 ACD/P4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Sealed,Seal On Both Sides,2RZ |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease |
Replaceable With: |
SKF, NSK S7202CTRV1VP4,7202 2RZ ACD/P4A |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-capacity D |
Contact Type: |
Normal Contact (two-point Contact) |

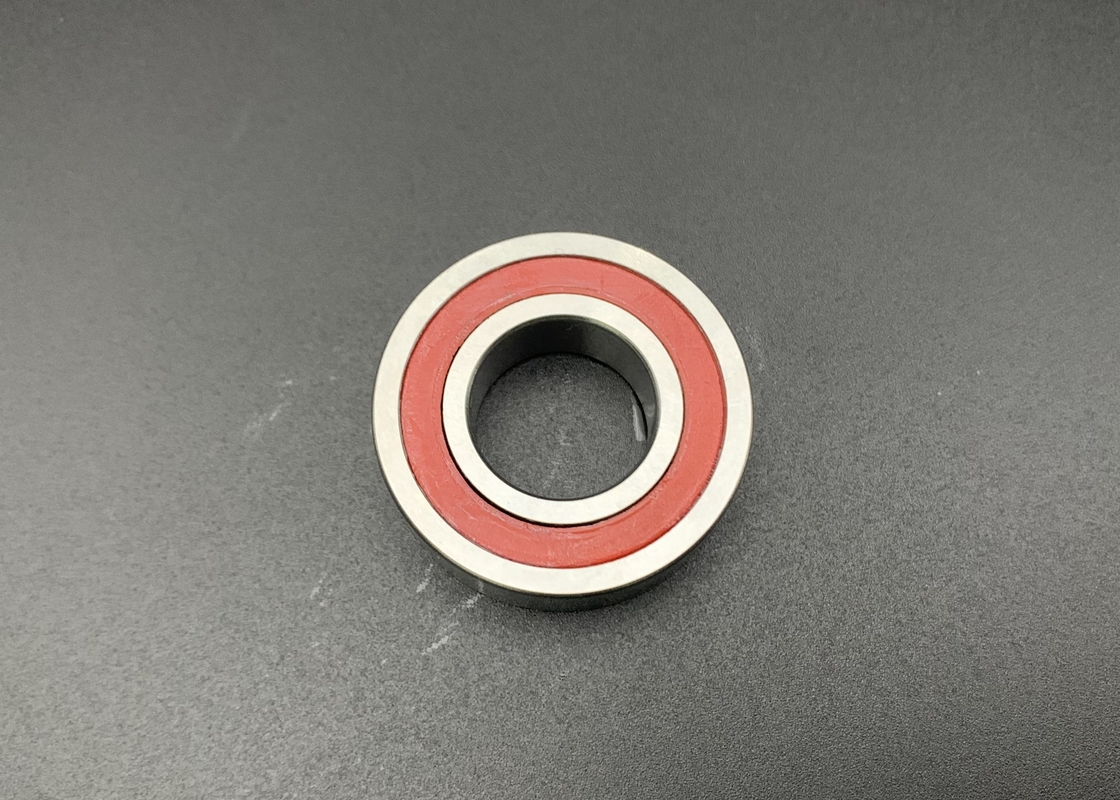

S7202 ACD/P4A 15*35*11 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing
Super-precision, high-capacity, single row angular contact ball bearing with seals
The S7202 ACD/P4A bearing,with a bore diameter of 15 mm, outside diameter of 35 mm, and width of 11 mm, features precise dimensions, high static load capacity, and is manufactured to the P4A precision grade. This bearing delivers superior performance and reliability, making it ideal for applications that require high rotational accuracy and stability.
| Part Number | S7202 ACD/P4A | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 15 mm |
| Inner Bore Diameter Tolerance | -0.004mm to 0 | |
| Outer Bore Diameter (D) | 35 mm | |
| Outer Bore Diameter Tolerance | -0.006mm to 0 | |
| Width (B) | 11 mm | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 25° (15°,40° Available) |
| Material | Chrome Steel Rings | |
| Cage Material | Phenolic | |
| Number of Rows | 1 Single Row | |
| Seal Type | Seal on both sides | |
| Temperature Range | -30°C to 150°C | |
| Lubrication | Grease | |
| Tolerance Class | P4A better than P4 (ABEC-7) | |
| Weight | 0.044 kg | |
| Matched Arrangement | No | |
| Universal Matching Bearing | No | |
| Preload | Not applicable | |
| Load and Speed | Dynamic Radial Load | 7150 N |
| Static Radial Load | 3200 N | |
| Reference Speed For Grease (r/min) | 43,000 rpm | |
| Limiting Speed For Oil(r/min) | 63,000 rpm | |
What's the Performance Features of S7202 ACD/P4A Bearing?
The S7202 ACD/P4A angular contact ball bearing is manufactured to P4A precision grade standards, excels in high-precision and high-performance applications. It handles both radial and axial loads simultaneously, supports high-speed operation with stability, minimizes torque and friction for energy efficiency, and offers enhanced rigidity for accuracy under heavy loads. Built with hybrid ceramic balls, this durable bearing ensures extended service life and effective performance across a wide temperature range, making it ideal for applications requiring superior rotational accuracy and reliability.
What's the Applications of the S7202 ACD/P4A Bearing?
The S7202 ACD/P4A bearing,is a high-precision angular contact ball bearing designed for demanding applications in sectors like machine tools, industrial automation, and other precision equipment. It excels in machining centers, milling machines, lathes, and semiconductor processing, as well as in robots and measurement devices requiring high speed and accuracy. Its ability to handle both radial and axial loads at high speeds makes it ideal for use in diverse applications ranging from marine gyro stabilizers and telescopes to racing car wheel hubs. With its superior performance and reliability, the S7202 ACD/P4A ensures optimal operation and precision across a wide range of industries.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
