Product Details
Place of Origin: China
Brand Name: CNBTZC or OEM
Certification: IATF16949:2016
Model Number: 706 CD/HCP4A
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: Please contact us,thanks
Packaging Details: plastic bag,box,carton,pallet
Delivery Time: 30 days
Payment Terms: L/C,T/T
Supply Ability: 500000pcs per month
Part Number: |
Precision Ceramic Bearings |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Feature: |
High Speed And Stiffness,High Running Accuracy,High Load Carrying Capacity |
Service: |
OEM & ODM Customized Services |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF |
Coating: |
Without |
Part Number: |
Precision Ceramic Bearings |
Structure: |
Angular Contact |
Seals Type: |
Open (2RZ Available) |
Feature: |
High Speed And Stiffness,High Running Accuracy,High Load Carrying Capacity |
Service: |
OEM & ODM Customized Services |
Lubrication: |
Grease,Oil |
Replaceable With: |
SKF |
Coating: |
Without |

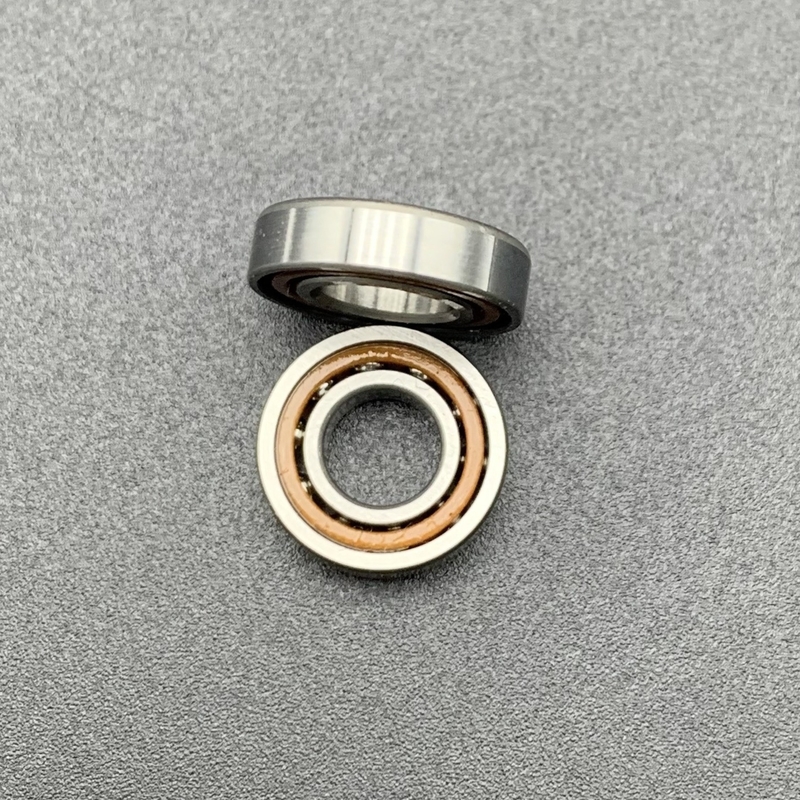

706 CD/HCP4A Super Precision Single Row Angular Contact Ball Bearing Ceramic Balls
706 CD/HCP4A Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls
The 706 CD/HCP4A bearing, featuring precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number | 706 CD/HCP4A | |
| Bearing Type | Angular Contact | |
| Measurement Unit | Metric | |
| Dimensions | Inner Bore Diameter (d) | 6 mm |
| Inner Bore Diameter Tolerance | -0.004mm to 0 | |
| Outer Bore Diameter (D) | 17 mm | |
| Outer Bore Diameter Tolerance | -0.004mm to 0 | |
| Width (B) | 6 mm | |
| Width Tolerance | -0.2mm to 0 | |
| Specifications | Contact Angle | 15° (25°,40° Available) |
| Material | Hybrid (Chrome Steel Rings, Ceramic Balls) | |
| Cage Material | Phenolic | |
| Number of Rows | Single Row | |
| Seal Type | Open | |
| Temperature Range | -30°C to 150°C | |
| Lubrication | Grease or Oil | |
| Tolerance Class | P4A better than P4 | |
| Weight | 0.005 kg | |
| Matched Arrangement | No (DB,DF,DT,DG) | |
| Preload | Not Applicable (EL,L,M,H,CP,CA) | |
| Load and Speed | Dynamic Radial Load | 2032 N |
| Static Radial Load | 765 N | |
| Reference Speed (r/min) | 140,000 rpm | |
| Limit Speed (r/min) | 220,000 rpm | |
What's the Performance Features of 706 CD/HCP4A Bearing?
What's the Applications of the 706 CD/HCP4A Bearing?
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
